SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body

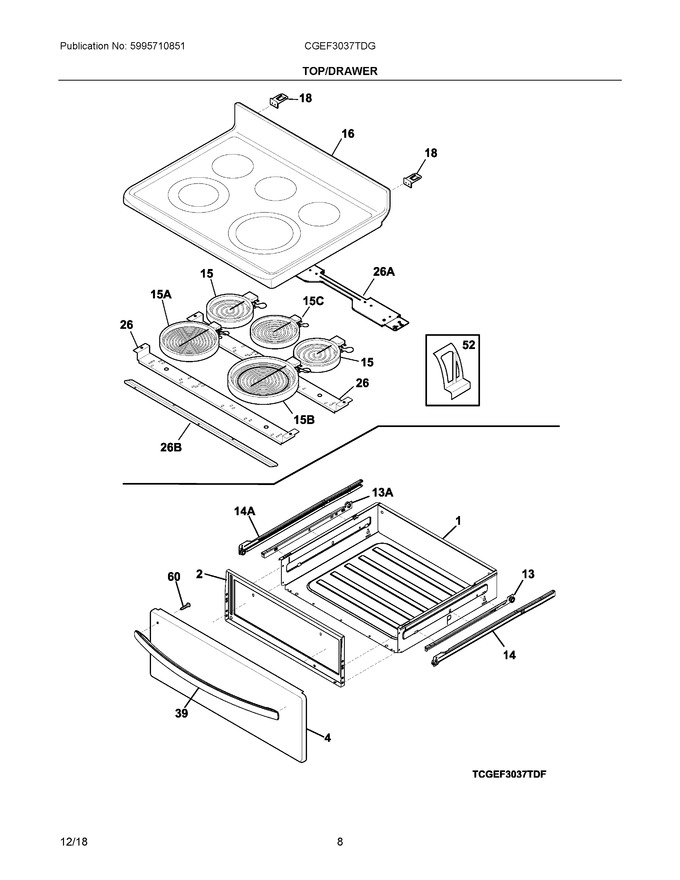

04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527989		Liner, Drawer   (Replaces: 316403300)				$ 28.83
4	5304516891		Panel, Drawer, Dark Stainless				$ 157.79
11	5304517906		Bracket, Rear Support, (2)				$ 11.38
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
15	318178110		Element, Surface, 6", 1200, (2), Radiant			Immediately	$ 122.86
16	5304513243		Main Top Asm, Black				$ 363.59
18	316580800		Bracket-hinge, Main Top			Immediately	$ 9.86
26	5304512926		Channel, Element Support				$ 46.22
39	316554009		Handle, Door/drawer, Black Stainless, W/spacers				$ 189.41
52	316461700		Clip, Element Mtg				$ 12.05
60	5303288572		Screw-handle Mtg		Appelez-nous	-
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
15A	5304533520		Element, Dual, 9"/6", Surface, 3000w, Quick Boil   (Replaces: 316282000)			Immediately	$ 90.14
15B	316282101		Element, Dual, 9/12", Surface, 1700/2700w, Dual Radiant			Immediately	$ 283.03
15C	5304521951		Element, Surface, Warmer   (Replaces: 5304509306)			Immediately	$ 64.46
26A	316498200		Bracket-support, Chassis, Aluminum				$ 52.33
26B	316607600		Bracket, Chassis Support, Front				$ 52.33
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5304517451		Harness, Wiring, Surface		Appelez-nous	-
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	5308014215		Screw, 6-20 X 0.312				$ 2.28

    View Diagram in Separate Window       Print Part List
