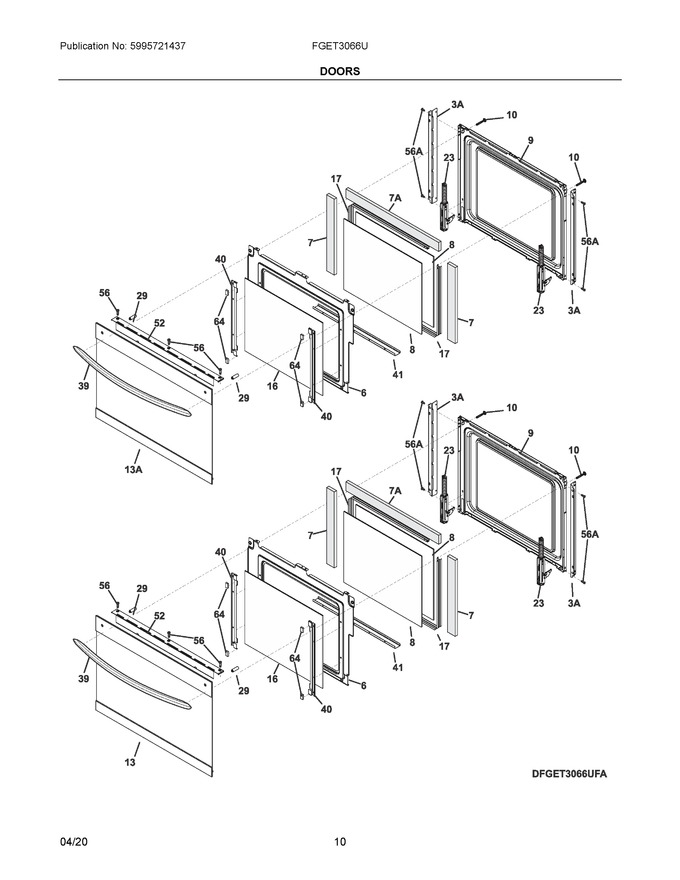

05 - Doors


06 - Wiring Diagram


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	808474502		Shield, Wool, Oven Door				$ 108.45
7	807887502		Insulation, Door, Side, (2)				$ 15.17
8	316502500		Glass, Door, Inner, (2)   (Replaces: 316502504)			Immediately	$ 115.65
9	808474604		Liner, Oven Door, Black				$ 107.49
10	5304507924		Screw, Handle Mtg, 10-24 X 2.188, (2)   (Replaces: 316513301)			Immediately	$ 16.48
13	5304514956		Door Assembly, Outer, Black Stainless, W/trim				$ 340.07
16	316502601		Glass, Door, Airwash, Hbii			Immediately	$ 207.85
17	5304503172		Spacer, Door Glass, (2)   (Replaces: 316502101)				$ 25.79
23	139010300		Hinge, Door, Turquoise, Dual Spring   (Replaces: 139010308)				$ 164.86
29	808296701		Spacer, Door Handle, (2)				$ 15.92
39	316554009		Handle, Door/drawer, Black Stainless, W/spacers				$ 189.41
40	5304524357		Bracket, Glass, Air Wash, (2)   (Replaces: 808109202)				$ 41.72
41	5304500644		Support, Glass				$ 19.35
52	5304520856		Trim, Door, Black, Top   (Replaces: 808109102)				$ 79.62
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
64	318165800		Spacer, Glass, Foam				$ 17.72
13A	5304514955		Door Assembly, Outer, Black Stainless, Upper Oven, W/trim				$ 316.30
3A	5304520787		Trim, Oven Door, Black, Side Vent   (Replaces: 139036601)				$ 61.66
56A	5303324184		Screw, 8-18 X 5/16, Black			Immediately	$ 14.18
7A	5304505925		Insulation, Door, Upper				$ 15.17
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
