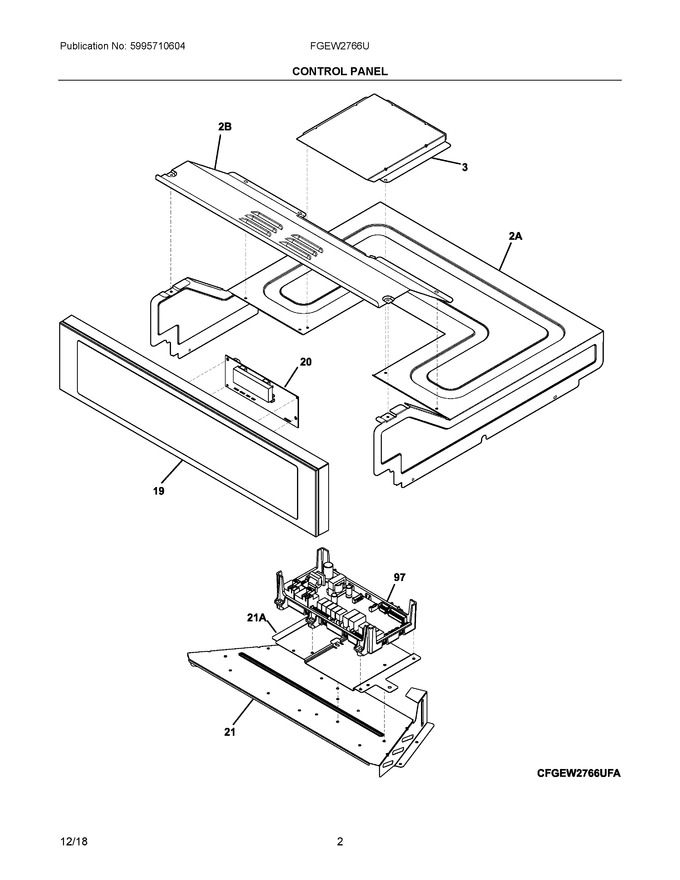

02 - Control Panel
03 - Body
04 - Door
05 - Wiring Diagram
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 318577801 | Box, Fan Service |
|
- | |||||
| 19 | 5304514975 | Control Panel, Assembly, Stainless, W/touch Pad |
|
$ 730.87 | |||||
| 20 | 316474948 | Controller, Electronic, Mars |
|
$ 278.71 | |||||
| 21 | 139028000 | Bracket, Mounting |
|
$ 63.00 | |||||
| 97 | 316472807 | Circuit Board, Assembly, Ovc1, W/housing |
|
Immediately | $ 366.77 | ||||
| 21A | 809191301 | Bracket, Ovc Board Mtg. |
|
- | |||||
| 2A | 139003601 | Cover, Oven Top |
|
- | |||||
| 2B | 139003701 | Cover, Control Access |
|
$ 33.31 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 3201861 | Screw, 6 X 0.375, (4) |
|
$ 0.76 | |||||
| NI | 5304523462 | Harness, Wiring, Communication, Control Panel (Replaces: 5304520190) |
|
$ 24.26 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 27.50 | ||||
| NIA | 318165800 | Spacer, Glass, Foam |
|
$ 17.72 | |||||
| NIA | 5303323129 | Screw, 8 X 0.750 |
|
- |
