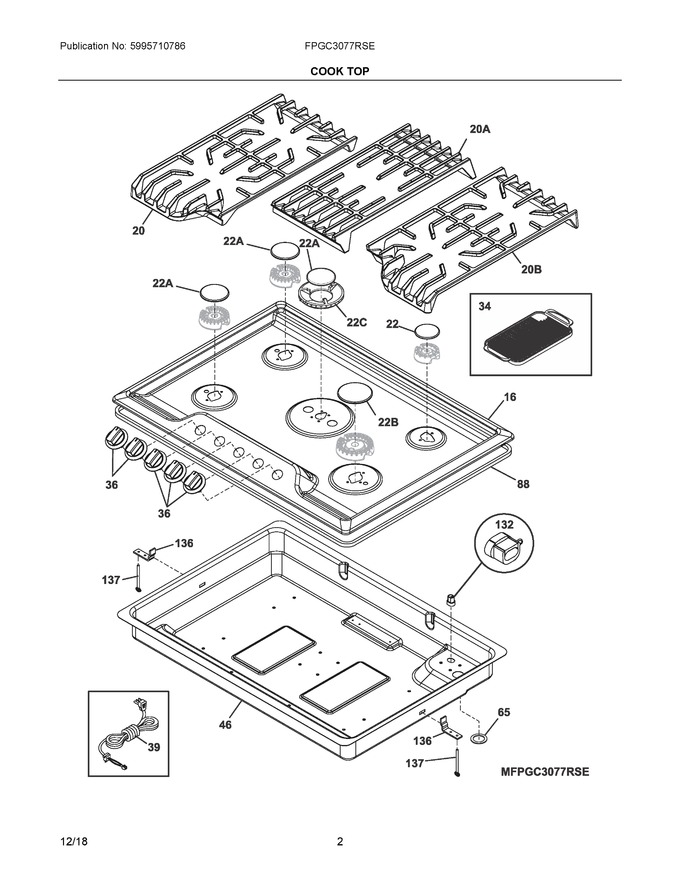

SELECT A DIAGRAM

01 - Cover Sheet


02 - Cook Top


03 - Burner


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
16	809218215		Main Top, Assembly, Stainless				$ 235.46
20	5304504907		Grate, Top Burner, Lh				$ 285.90
22	5304508441		Cap, 5k Burner, Matte, Black			Immediately	$ 35.04
34	5304495353		Griddle			Immediately	$ 166.84
36	5304500250		Knob, Top Valve, Stainless				$ 124.03
39	305574902		Power Cord, Electrical, Supply				$ 69.46
46	5304499395		Burner Box		Appelez-nous	-
65	5304506478		Seal, Rubber				$ 11.34
88	5304508434		Gasket, Main Top, 30		Appelez-nous	-
132	5304513507		Strain Relief   (Replaces: 3201437)				$ 9.10
136	318264301		Support, Box, (2)				$ 42.95
137	305452400		Screw, Lock Bracket, (2)			Immediately	$ 12.20
20A	5304500257		Grate, Top Burner, Center				$ 292.73
20B	5304504908		Grate, Top Burner, Rh				$ 301.93
22A	5304508442		Cap, 9.5k Burner, Matte, Black			Immediately	$ 36.55
22B	5304508443		Cap, 14k Burner, Matte, Black			Immediately	$ 46.01
22C	5304519953		Cap, Burner, Black, G5				$ 165.17
NI	318163602		Cleaner, Stainless Steel				$ 26.51
NIA	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NIA	305338602		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
