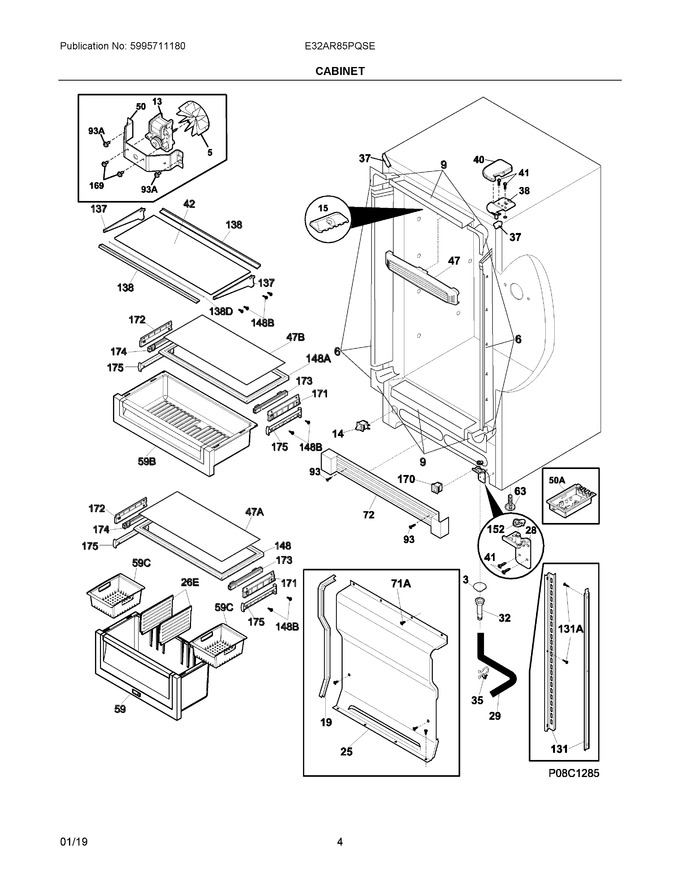

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 62.17
5	297259600		Fan Blade, Evaporator				$ 9.50
6	297200900		Breaker Kit W/corners			Immediately	$ 70.85
9	297200100		Breaker Kit W/corners, 32", Top And Bottom				$ 59.28
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 55.32
14	216822900		Switch, Light/lamp, Ramp   (Replaces: 216822901)			Immediately	$ 70.16
15	241891105		Light-led				$ 97.39
19	216204902		Gasket-evap Cover			Immediately	$ 35.74
25	297099255		Cover-evaporator				$ 86.36
28	297302512		Hinge-lower				$ 32.54
29	5304510353		Hose, Drain, 17.8 Inch				$ 14.61
30	297215701		Breaker, Corners		Appelez-nous	-
31	297165800		Pan-drain				$ 89.15
32	5304511843		Drain   (Replaces: 5308005500)				$ 13.74
35	216273000		Clip, Wire Retainer				$ 22.42
37	297273906		Trim-cabinet Corner, Gray				$ 7.23
38	297303900		Hinge-upper, Rh				$ 27.32
40	297304000		Cover-hinge, Gray, Rh				$ 20.63
41	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 14.18
42	297296600		Shelf-glass				$ 115.03
47	297192903		Baffle, Air			Immediately	$ 25.31
50	08013207		Bracket-fan Motor				$ 12.92
59	5304512452		Bin, Crisper, Assy				$ 382.88
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 38.39
72	297407053		Grille, Kickplate, Grey		Appelez-nous	-
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 10.85
101	297162851		Plate-hinge, Tapping		Appelez-nous	-
131	297130200		Channel-shelf Mtg, Side, (2)				$ 55.99
137	297296511		Bracket-shelf   (Replaces: 297296510)				$ 85.76
138	297296300		Trim-shelf				$ 76.55
148	297288800		Frame, Crisper-cover				$ 211.07
152	297302700		Bearing-hinge		Appelez-nous	-
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 12.76
170	297280403		Valve, Breather				$ 21.69
171	297092700		Bracket, Crisper Cover, Rh				$ 55.36
172	297092701		Bracket, Crisper Cover, Lh				$ 56.88
173	5304515502		Slide, Crisper, Rh, W/clips   (Replaces: 297291210)				$ 77.36
174	5304515501		Slide, Crisper, Lh, W/clips   (Replaces: 297291211)				$ 78.08
175	297099500		Support, Crisper			Immediately	$ 47.03
131A	297146821		Screw, Th, 8-18x.470 Ab Qx, White, (6)				$ 4.94
138D	297350900		Gasket, Shelf				$ 18.08
148A	297288801		Frame, Deli Drawer				$ 245.94
148B	297142600		Screw, Blunt, 8-32 X 5/8				$ 13.01
26E	297099400		Divider-crisper				$ 67.83
47A	297291300		Glass, Crisper Cover			Immediately	$ 124.03
47B	297291301		Glass, Crisper Cover			Immediately	$ 131.83
50A	241891608		Board-led Power				$ 272.06
59B	297296800		Drawer, Deli-assy				$ 243.15
59C	297260200		Bin, Crisper, Tall				$ 110.09
71A	297146820		Screw, 8-18ab X.470 Qx				$ 7.33
93A	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	125963-48		Insulation, 24", Suction Line   (Replaces: 297001704)			Immediately	$ 59.16
NI	297305500		Clip, Crisper				$ 13.42
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 3.79
NI	297333510		Trim Kit, Built In, Single, Complete, Trimkitss1		Appelez-nous	-
NI	297333610		Trim Kit, Built In, Dual, Complete, Trimkitss2		Appelez-nous	-
NI	5304508336		Energy Guide		Appelez-nous	-
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
