SELECT A DIAGRAM

02 - Console And Control Parts


03 - Cam


04 - Door Parts


05 - Tub And Frame Parts


06 - Motor Pump Parts


07 - Power Dry And Motor Parts


08 - Racks And Trays

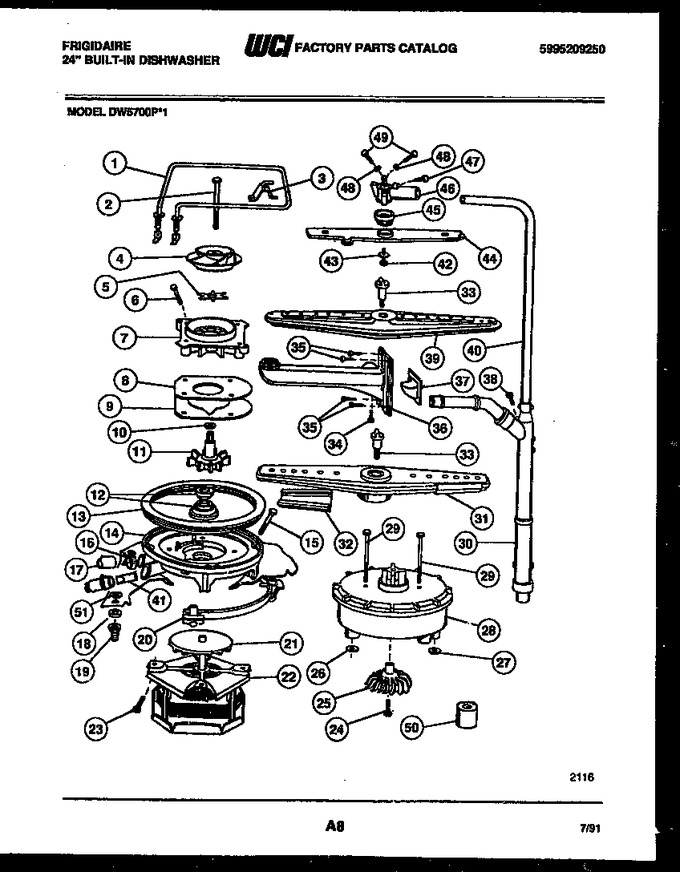

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809584		Heater-includes 19				$ 222.23
2	5300806353		Screw-10-32 X 2 1/4``				$ 12.06
3	5300809585		Heater Bracket (2)		Appelez-nous	-
4	5300809918		Upper Impeller				$ 83.45
5	3100003901		Macerator		Appelez-nous	-
6	5300807359		Screw-10 X 1 3/4`` (4)		Appelez-nous	-
7	5300809921		Spacer Plate				$ 12.39
8	5300809006		Pump Plate				$ 45.94
9	5300809007		Pump Gasket				$ 18.06
10	5300806521		O-ring				$ 32.42
11	5300809910		Pump Impeller Kit-includes 4-5-10 & 12		Appelez-nous	-
12	5300803903		Water Seal				$ 109.86
13	5300809586		Pump Gasket				$ 85.64
14	5300809591		Pump Housing		Appelez-nous	-
15	5300807268		Screw-10 X 1``(3)				$ 5.93
16	5300808186		Hose Clamp		Appelez-nous	-
17	5300809628		Recirculating Hose				$ 55.13
18	5300809983		Insulating Washer (2)		Appelez-nous	-
19	154106202		Heater Nut 1/2 - 20 Brass (2)   (Replaces: 5300806834)			Immediately	$ 18.32
20	5300809590		Pump Clamp				$ 47.93
21	5300809366		Watershield Assembly				$ 2.26
22	5300809984		Motor Assembly		Appelez-nous	-
23	5300809022		Screw-10 X 1`` (4)		Appelez-nous	-
24	5300809073		Screw-8 X 3/4``		Appelez-nous	-
25	5300809014		Diffuser		Appelez-nous	-
26	5300809016		O-ring				$ 5.83
27	5300809015		O-ring				$ 6.09
28	5300809011		Filter Body Assembly		Appelez-nous	-
29	5300809012		Screw-10 X 2 7/8`` (2)				$ 8.03
30	5300808805		Delivery Tube Assembly Kit		Appelez-nous	-
31	5300810015		Spray Arm Assembly-includes 32				$ 152.41
32	5300809938		Spray Arm Shield (2)				$ 37.05
33	5300809018		Spray Arm Bolt (2)		Appelez-nous	-
34	5300806656		Screw-8 X 1/2``		Appelez-nous	-
35	5300809592		Screw-10 X 3/4`` (4)		Appelez-nous	-
36	5300809019		Delivery Arm				$ 68.99
37	5300805781		Delivery Arm Plug		Appelez-nous	-
38	5300806656		Screw-8 X 1/2`` (3)		Appelez-nous	-
39	5300809021		Spray Arm Assembly				$ 34.07
40	5300807224		Supply Tube				$ 38.22
41	5300809937		Check Valve				$ 74.71
42	5300808466		Screw-8 X 1 1/4``				$ 6.01
43	5308000186		Washer   (Replaces: 5300808465)			Immediately	$ 6.02
44	5300808463		Spray Arm Seal Assembly		Appelez-nous	-
45	5300808462		Distributor Bushing				$ 13.86
46	5300808464		Distributor				$ 5.34
47	5300809055		Screw-8 7/16``				$ 1.21
48	5300809044		Sealing Washer		Appelez-nous	-
49	5300806901		Screw-8 X 5/8`` (2)		Appelez-nous	-
50	5300803923		Seal Installation Tool				$ 57.38
51	5300809587		Washer (2)		Appelez-nous	-
3A	5300810094		Screw-10 X 5/8`` (2) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
