SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard

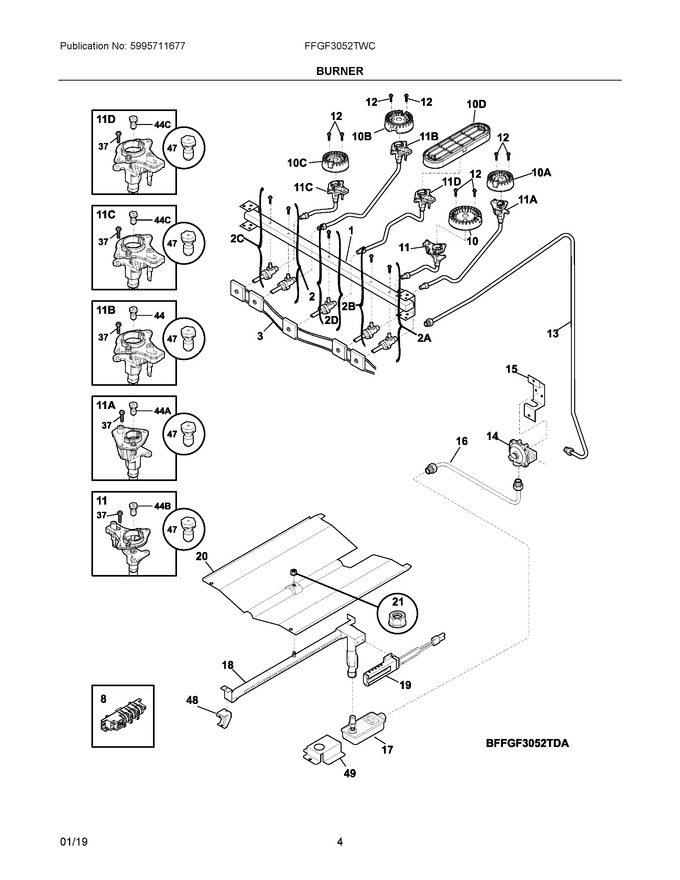

03 - Burner


04 - Body


05 - Top/drawer


06 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304513540		Manifold, Pipe				$ 99.35
2	5304506549		Valve, Top Burner, Blue Stem, 1125btu			Immediately	$ 62.34
3	5304528828		Harness, Ignition   (Replaces: 5304506556)				$ 107.53
8	808608804		Spark Module			Immediately	$ 76.06
10	316438400		Burner, Sealed, 17k			Immediately	$ 83.42
11	316536621		Ignitor/orifice Assy .,, Top Burner, Right Front, 16k, W/tube & Holder				$ 170.10
12	316540900		Screw, Burner, Head Mtg, (8)			Immediately	$ 15.17
13	5304512535		Tube, 7/16, Aluminum, Reg To Manf, W/fittings		Appelez-nous	-
14	316091711		Regulator, Pressure   (Replaces: 5304498819)			Immediately	$ 90.03
15	316091600		Bracket, Regulator				$ 73.56
16	316065006		Tube, Valve To Regul, 3/8				$ 122.09
17	3203459		Valve, Safety				$ 303.64
18	316114300		Burner, Oven				$ 169.88
19	5304509706		Ignitor, Oven Burner			Immediately	$ 189.59
20	316496001		Baffle, Oven Burner				$ 78.33
21	154079601		Nut, Hex Head Sems   (Replaces: 5303013272)				$ 0.41
37	316240600		Screw, Assy Mtg, (8), Ignitor/orifice			Immediately	$ 12.13
44	316527502		Orifice, Burner, 12k				$ 22.68
47	GRLP4		Lp Conversion Kit, W/instructions, Optional, Accessory			Immediately	$ 56.70
48	3018603		Bracket, Support, Oven Burner		Appelez-nous	-
49	316416300		Bracket, Safety Valve		Appelez-nous	-
10A	316438200		Burner, Sealed, 5k			Immediately	$ 56.70
10B	316438000		Burner, Sealed, 12k				$ 67.81
10C	316558300		Burner, Sealed, 9.5k			Immediately	$ 52.45
10D	316559300		Burner, Sealed, 9.5k, Oval				$ 177.19
11A	316536610		Ignitor/orifice Assy., Top Burner, Right Rear, 5k, W/holder, Tube			Immediately	$ 92.38
11B	316536612		Ignitor/orifice Assy., Top Burner, Left Rear, 12k, W/holder, Tube				$ 116.52
11C	316536602		Ignitor/orifice Assy., Top Burner, Left Front, 9.5k, W/holder, Tube				$ 132.62
11D	316536623		Ignitor/orifice Assy., Top Burner, Center, 9.5k, W/holder & Tube				$ 147.71
2A	5304506547		Valve, Top Burner, Black Stem, 500btu				$ 69.01
2B	5304507282		Valve, Top Burner, White Stem, 1500btu   (Replaces: 5304506550)			Immediately	$ 53.85
2C	5304506548		Valve, Top Burner, Green Stem, 850btu			Immediately	$ 82.66
2D	5304506551		Valve, Top Burner, Pink Stem, 2500btu				$ 61.43
44A	316527504		Orifice, Burner, 5k				$ 22.68
44B	316527508		Orifice, Top Burner, 16k				$ 18.43
44C	316527500		Orifice, Burner, 9.5k				$ 21.40
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	5303271648		Screw, Wafer Hd Sq Dr, 8-18ab X 0.5			Immediately	$ 13.46
NI	5304494425		Harness, Ignitor   (Replaces: 316580602)				$ 86.45
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316215600		Screw, Valve Mtg., 1/4 - 20			Immediately	$ 14.18
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NIA	316021104		Screw, Hex, 8-18 X 3/8, Nick, (3), Regulator Brkt				$ 7.79
NIB	316257400		Bracket, Spark Module				$ 15.17
NIC	5304505563		Wire, Ground, Spark Module, W/connector			Immediately	$ 16.23

    View Diagram in Separate Window       Print Part List
