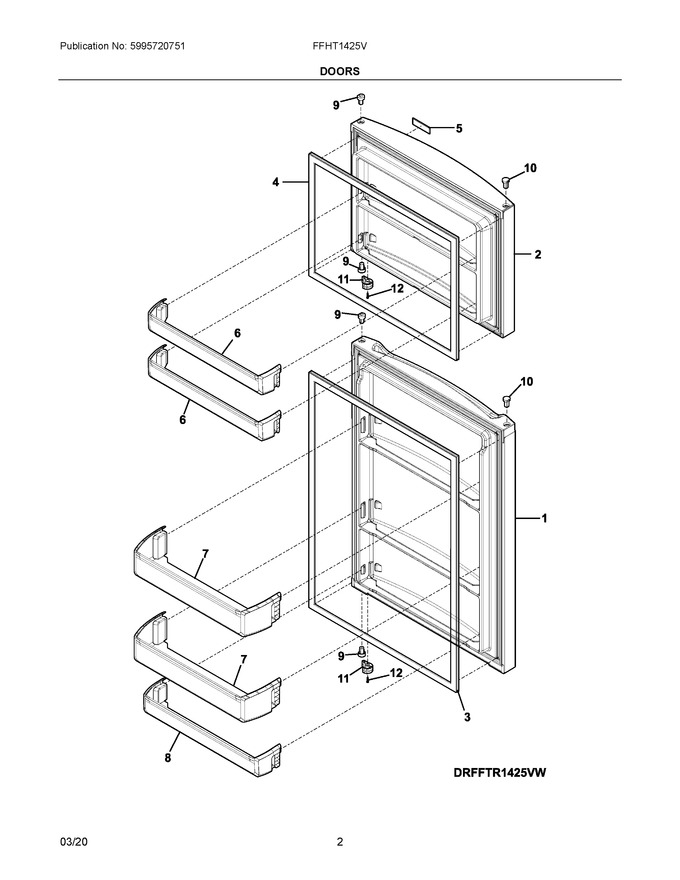

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Doors
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304520518 | Door Assembly, Fresh Food, Stainless |
|
Immediately | $ 388.50 | ||||
| 2 | 5304520517 | Door Assembly, Freezer, Stainless |
|
$ 343.93 | |||||
| 3 | 811988584 | Gasket, Door, Fresh Food |
|
$ 72.60 | |||||
| 4 | 811988540 | Gasket, Door, Freezer |
|
Immediately | $ 51.77 | ||||
| 5 | 5304511146 | Badge, Frigidaire, Chrome |
|
Immediately | $ 47.03 | ||||
| 6 | 5304536633 | Bin, Door, Freezer (Replaces: 5304520457) |
|
$ 10.85 | |||||
| 7 | 5304536634 | Bin, Door, Fresh Food (Replaces: 5304520458) |
|
$ 15.72 | |||||
| 8 | 5304536635 | Bin, Door, Fresh Food, Bottle (Replaces: 5304520459) |
|
$ 12.15 | |||||
| 9 | 5304520519 | Bearing, Hinge, Stainless, Door |
|
Immediately | $ 9.10 | ||||
| 10 | 5304520520 | Cover, Hole, Grey, Hinge Bearing |
|
$ 8.19 | |||||
| 11 | 5304520515 | Hook, Auto Closer, Grey, Door |
|
Immediately | $ 12.89 | ||||
| 12 | 808337903 | Screw, Pf Ab Pfz Ph, 3.5x1.27x32 |
|
$ 5.31 |
