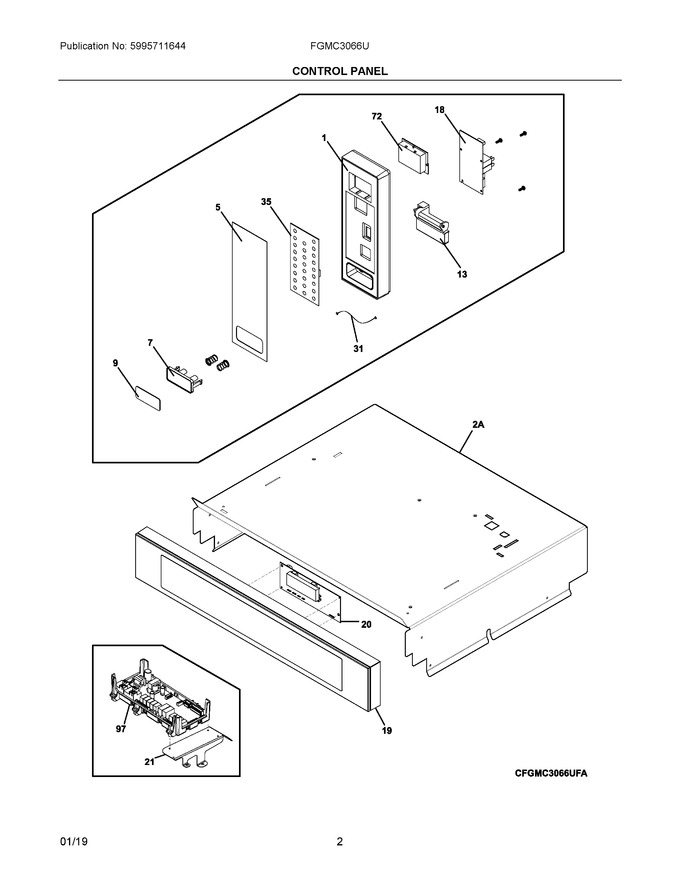

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304520027		Control Panel, Microwave				$ 87.16
5	5304520029		Membrane, Touch Pad				$ 123.47
7	5304520028		Button, Door Opening		Appelez-nous	-
9	5304520025		Cover, Button, Decorative		Appelez-nous	-
13	5304520026		Lever, Door Opening				$ 17.78
18	5304520031		Pc Board, Control				$ 241.46
19	5304514967		Control Panel, Assembly, Black Stainless				$ 702.97
20	316474944		Controller, Electronic, Mars			Immediately	$ 278.71
21	5304520558		Bracket, Ovc Support				$ 25.79
31	5304520032		Connector		Appelez-nous	-
35	5304520030		Touch Pad, Pc Board				$ 187.97
72	5304519326		Pc Board, Display				$ 184.68
97	316472807		Circuit Board, Assembly, Ovc1, W/housing			Immediately	$ 366.77
2A	5304516492		Plate, Mw Support		Appelez-nous	-
NI	3201861		Screw, 6 X 0.375, (4)				$ 0.76
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	5304523462		Harness, Wiring, Communication, Control Panel   (Replaces: 5304520190)				$ 24.26
NI	5304514832		Harness, Wiring, Upper Oven, Hall Effect				$ 51.57
NI	5304514831		Harness, Grounding Wire				$ 11.38
NIA	5303323129		Screw, 8 X 0.750		Appelez-nous	-
