SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

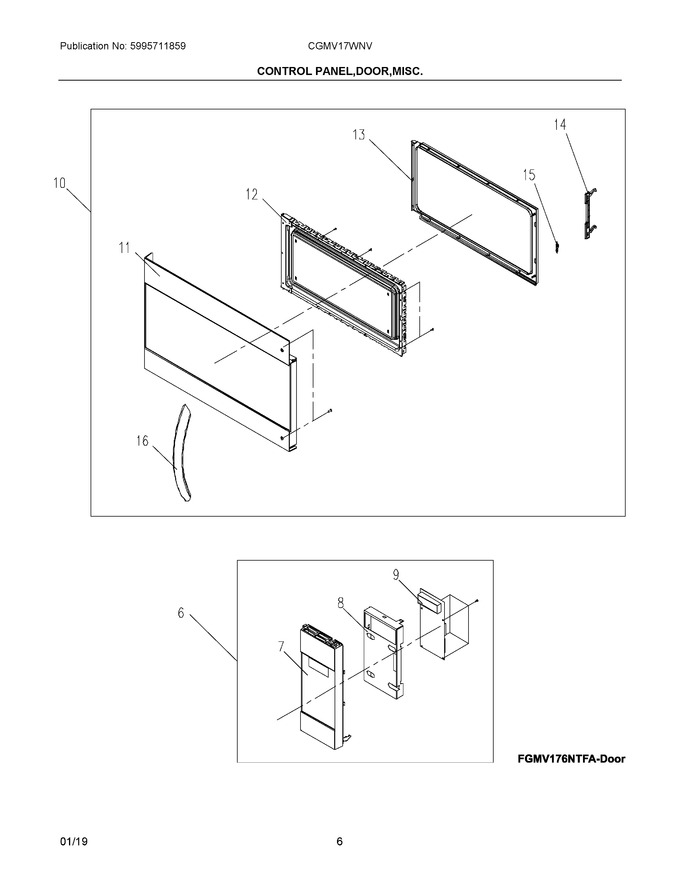

03 - Control Panel,door,misc.


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	5304520631		Control Panel, Assembly, Stainless, W/board				$ 588.84
7	5304509662		Control Panel, W/membrane, Black				$ 464.93
8	5304509634		Panel, Control Mount, Bracket				$ 50.32
9	5304520633		Pc Board, Assembly				$ 373.76
10	5304509638		Door Assembly, Stainless				$ 617.14
11	5304509639		Panel, Outer Door, Stainless				$ 397.61
12	5304494118		Panel, Inner Door, Black				$ 223.39
13	5304509640		Frame, Choke Cover, Inner Door				$ 50.61
14	5304525298		Latch, Door   (Replaces: 5304509432)			Immediately	$ 10.85
15	5304521953		Spring, Door Latch   (Replaces: 5304509433)				$ 7.23
16	5304509641		Handle, Door, Stainless				$ 178.25

    View Diagram in Separate Window       Print Part List
