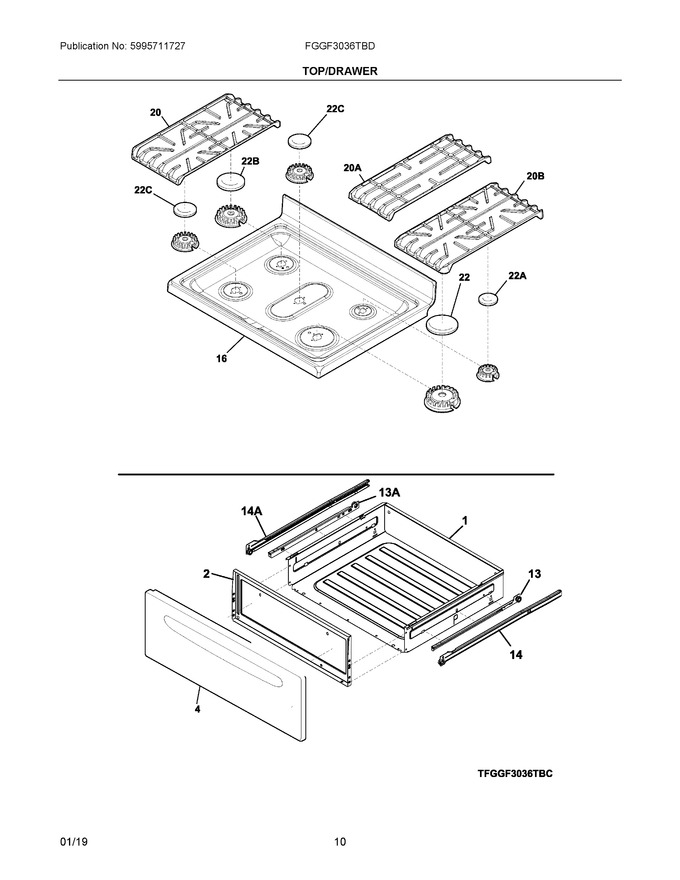

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316408706		Drawer, Utility			Immediately	$ 110.61
2	5304527988		Liner, Drawer   (Replaces: 316403200)			Immediately	$ 26.54
4	5304513125		Panel, Drawer, Black				$ 90.86
10	316433300		Screw, 10-14 X 2.125", Handle Mtg.			Immediately	$ 27.50
13	5304517905		Glide, Drawer, Black, Rh Inner				$ 16.69
14	5304517904		Glide, Drawer, Black, Rh Outer			Immediately	$ 25.79
16	316610014		Main Top, Black			Immediately	$ 253.03
20	808754701		Grate, Black, Lh				$ 193.49
22	5304508468		Cap, 17k Burner, Black   (Replaces: 316262104)				$ 49.45
13A	5304517903		Glide, Drawer, Black, Lh Inner				$ 28.97
14A	5304517902		Glide, Drawer, Black, Lh Outer			Immediately	$ 47.98
20A	808754801		Grate, Black, Center				$ 197.04
20B	808754702		Grate, Black, Rh				$ 193.49
22A	5304508441		Cap, 5k Burner, Matte, Black   (Replaces: 316261704)			Immediately	$ 35.04
22B	5304508443		Cap, 14k Burner, Matte, Black   (Replaces: 316262004)			Immediately	$ 46.01
22C	5304508442		Cap, 9.5k Burner, Matte, Black   (Replaces: 316261804)			Immediately	$ 36.55
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
