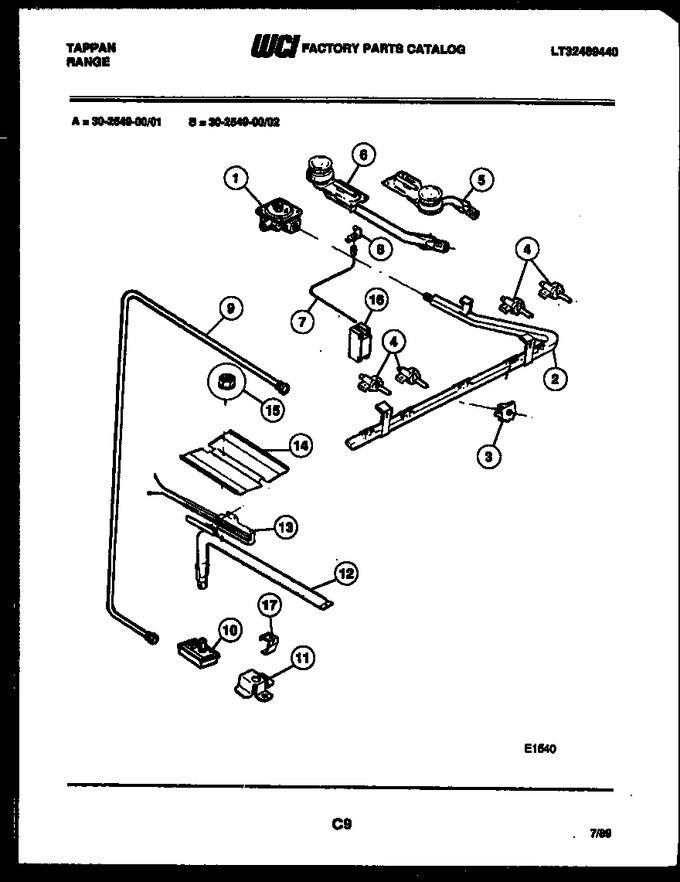

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3203448		Control - Regulator		Appelez-nous	-
2	3203450		Manifold - Pipe		Appelez-nous	-
2	3205046		Manifold, Pipe		Appelez-nous	-
3	3017931		Switch-igniter (4)		Appelez-nous	-
4	3204882		Valve-top 2 Pos (4)		Appelez-nous	-
5	3203392		Burner - Top Front (2)		Appelez-nous	-
5	3204958		Burner, Top Front (2)		Appelez-nous	-
6	3203393		Burner - Top Rear (2)		Appelez-nous	-
6	3204960		Burner-top Rear (20)		Appelez-nous	-
7	3200276		Base, Igniter (2)		Appelez-nous	-
8	3016993		Retainer-igniter		Appelez-nous	-
9	3203458		Tube, Alum 3/8		Appelez-nous	-
10	3203459		Valve-safety				$ 303.64
11	3131438		Bracket, Valve		Appelez-nous	-
12	3131439		Burner-oven				$ 204.59
13	3131300		Igniter, Oven		Appelez-nous	-
14	3203265		Baffle,oven Burner		Appelez-nous	-
15	3013272		Nut		Appelez-nous	-
16	3200669		Spark Module		Appelez-nous	-
17	3018603		Brkt, Oven Burner Supt		Appelez-nous	-
4A	3204499		Screw-valve Mtg (8) (non-illustrated)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
