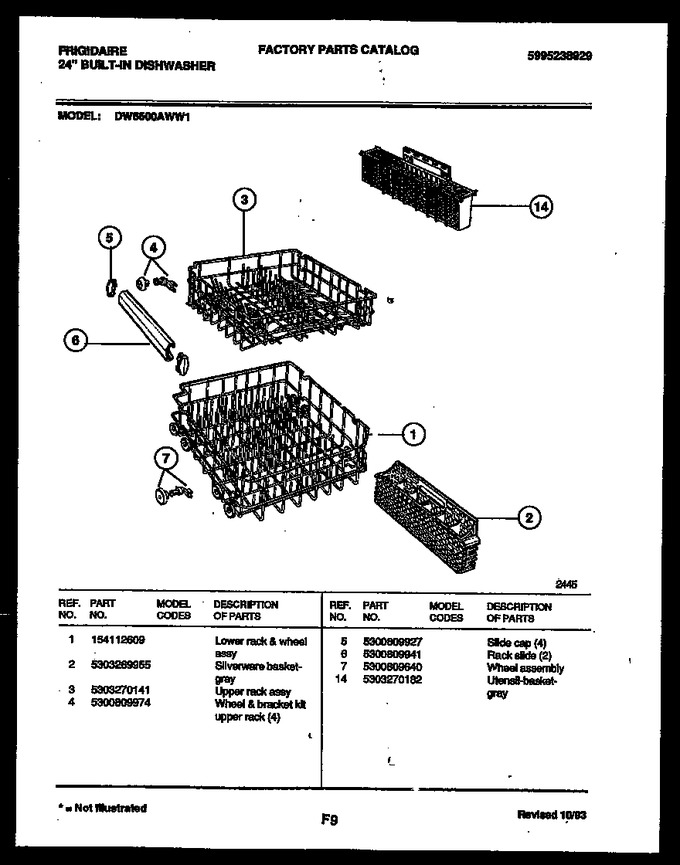

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154112609 | Lower Rack & Wheel Assy |
|
- | |||||
| 2 | 5303269955 | Silverware Basket-gray |
|
- | |||||
| 3 | 5303270141 | Upper Rack Assy |
|
$ 117.86 | |||||
| 4 | 5304535381 | Wheel & Bracket Kit - Upper Rack (4) (Replaces: 5300809974) |
|
Immediately | $ 10.05 | ||||
| 5 | 5300809927 | Slide Cap (4) |
|
Immediately | $ 3.69 | ||||
| 6 | 5300809941 | Rack Slide (2) |
|
- | |||||
| 7 | 5304532229 | Wheel Assembly (Replaces: 5300809640) |
|
Immediately | $ 12.75 | ||||
| 14 | 5303270182 | Utensil-basket-gray |
|
- |
