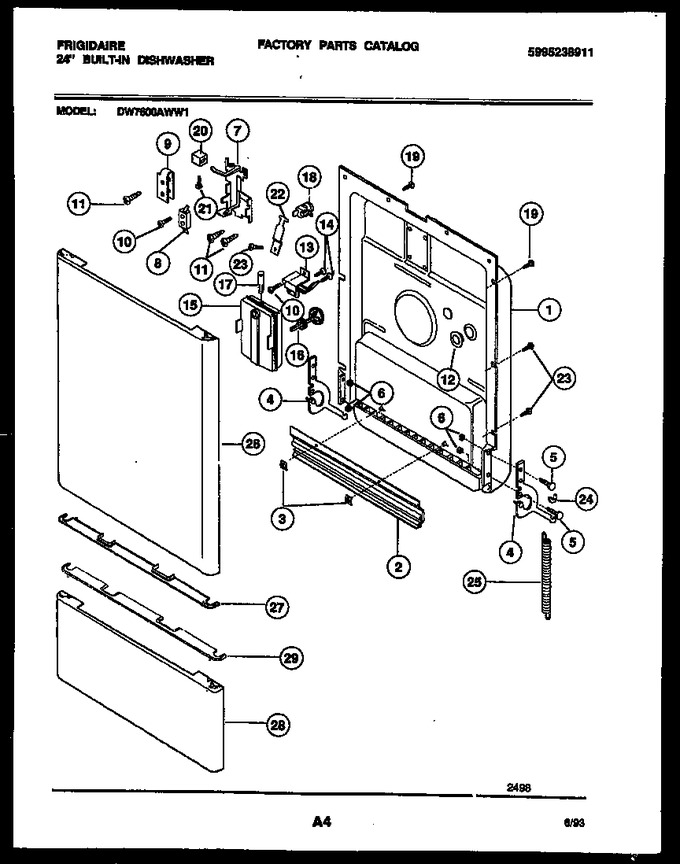

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300809931		Inner Door Assy		Appelez-nous	-
2	5300809773		Baffle		Appelez-nous	-
3	154026601		Palnut				$ 25.67
4	5303270031		Arm-counterbalance (2)				$ 79.75
5	154093301		Screw-arm (4)			Immediately	$ 2.12
6	15407961		Nut-arm (4)		Appelez-nous	-
7	5303281374		Latch Assy-almond		Appelez-nous	-
8	5300809934		Switch-latch				$ 129.57
9	5300809933		Cover-switch		Appelez-nous	-
10	5300808618		Screw-switch (2)		Appelez-nous	-
11	218781101		Screw - Latch (4)   (Replaces: 154026501)				$ 15.60
13	5300809782		Bi-metal Assy				$ 47.51
14	5300807501		Screw 8 X 1/2`` C.r. Truss Chr		Appelez-nous	-
15	5300806753		Body-rinse Agent Dispenser				$ 69.93
16	154121401		Indicator/fill Plug Rinse Agent		Appelez-nous	-
17	5300809898		Plunger				$ 36.49
18	5303297402		Thermostat		Appelez-nous	-
19	5300808749		Screw-consult To Door (6)		Appelez-nous	-
20	5303297419		Knob-latch-almond		Appelez-nous	-
21	5300808715		Screw-knob		Appelez-nous	-
22	5300809097		Retainer-thermostat		Appelez-nous	-
23	154419403		Screw 8ax.375 C.r. Hex Black   (Replaces: 5300808658)				$ 13.10
24	5300805884		Pad-spring (2)		Appelez-nous	-
25	154128601		Spring-arm (2)		Appelez-nous	-
26	154087602		Panel-door-almond		Appelez-nous	-
27	154121902		Trim-door Panel-btm-almond		Appelez-nous	-
28	154087702		Panel-access-almond		Appelez-nous	-
29	154087802		Trim-access Panel-top-almond		Appelez-nous	-
*77491	154144401		Clip-attack (2)		Appelez-nous	-
27A	154144401		Clip-attack (4) (non-illustrated)		Appelez-nous	-
27B	5300809055		Screw 8 X .438 C.r. Truss S.s. (4) (non-illustrated)				$ 1.21
