SELECT A DIAGRAM

01 - Cover Sheet


02 - Door


03 - Cabinet

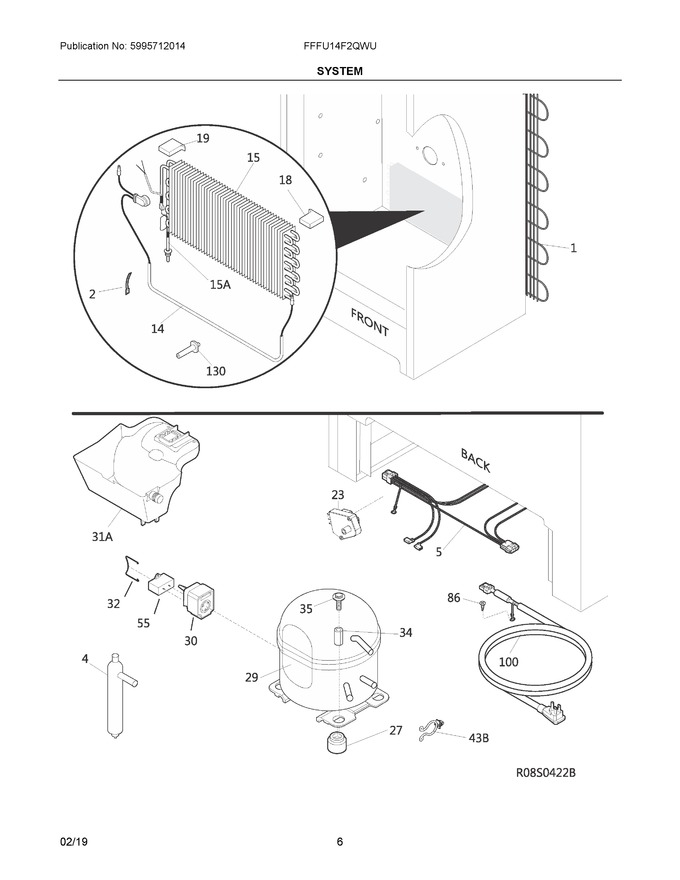

04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297380100		Condenser, U14		Appelez-nous	-
2	5308000110		Strap-evap/heater, Aluminum, (2)			Immediately	$ 59.82
4	5303305677		Filter-dryer   (Replaces: 297396820)			Immediately	$ 31.67
5	5304496675		Harness, W/sig Lt		Appelez-nous	-
14	5304496687		Heater-defrost				$ 97.81
15	297414800		Evaporator				$ 145.30
18	297078701		Insulator-evap, Styrofoam, Rh				$ 3.62
19	297078801		Insulator-evap, Styrofoam, Lh				$ 3.62
21	5304509570		Control-temperature		Appelez-nous	-
23	5304518034		Timer, Defrost   (Replaces: 5304516309)			Immediately	$ 57.55
27	297368501		Bolt, Compressor				$ 4.96
29	5304515158		Compressor		Appelez-nous	-
30	297259532		Controller, Compressor		Appelez-nous	-
32	216954300		Clip, Controller				$ 17.01
34	5304511843		Sleeve				$ 13.74
35	297368500		Bolt, Compressor		Appelez-nous	-
55	297286812		Capacitor-run, 250 Va, 12 Mf   (Replaces: 297286802)			Immediately	$ 11.78
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 13.65
100	297366805		Cord, Power   (Replaces: 297366804)				$ 68.68
130	297244700		Support, Evaporator Mtg				$ 4.26
15A	297348600		Heat Exchanger				$ 120.74
31A	297231901		Pan-drain				$ 46.17
43B	297315800		Clip, Wire				$ 10.13
NI	216337701		Screw, Hwh, 10-24 X 0.500, Swage				$ 14.41
NI	5304509031		Harness, Jumper		Appelez-nous	-
NI	5304485759		Tape, Foil   (Replaces: 216737600)				$ 0.71
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.03
NI	125963-48		Insulation, 24", Suction Line   (Replaces: 297001704)			Immediately	$ 59.16
NIA	240555002		Screw-#8-32 X 3/8			Immediately	$ 13.46

    View Diagram in Separate Window       Print Part List
