SELECT A DIAGRAM

01 - Cover Sheet

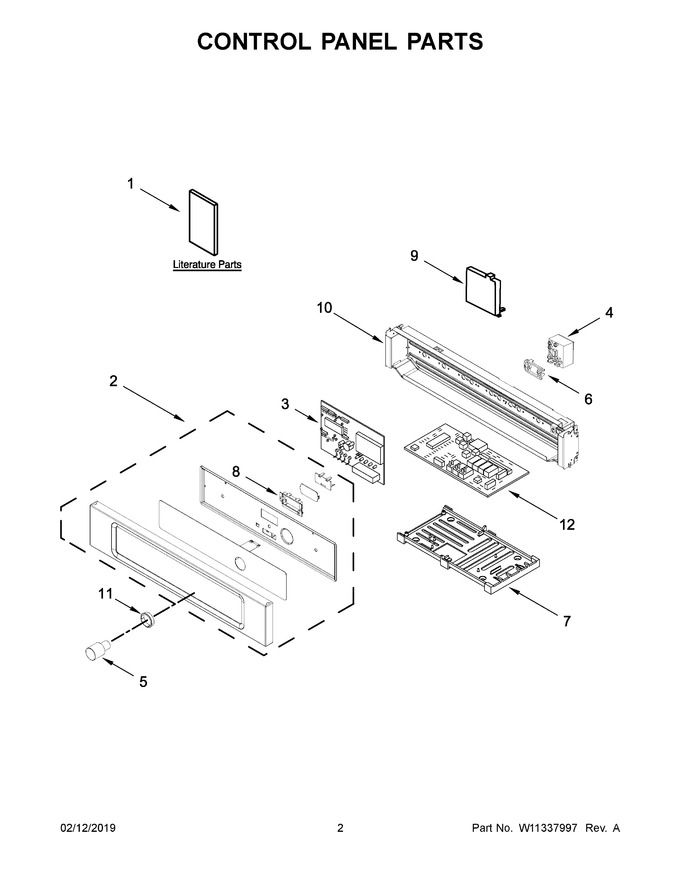

02 - Control Panel Parts


03 - Cabinet Parts


04 - Door Parts


05 - Top Venting Parts


06 - Oven Interior Parts


07 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10909666		Installation Instructions		Appelez-nous	-
2	W11160285		Assembly, Control Panel (stainless)   (Replaces: W11115247)			Immediately	$ 307.69
3	W11160286		Pcba, User Interface   (Replaces: W10913244)			Immediately	$ 386.69
4	WPW10623991		Dial, Control   (Replaces: W10623991)				$ 228.11
5	W10448758		Knob		Appelez-nous	-
6	W10837437		Spacer, Dial		Appelez-nous	-
7	461967750752		Holder, Pcb				$ 60.61
8	461967750153		Holder, Display Board				$ 70.79
9	W10884489		Holder, Control Board   (Replaces: 461967750132)				$ 66.02
10	W11660273		Support, Panel   (Replaces: 461961099964)		Appelez-nous	-
11	461960204731		Ring				$ 59.99
12	W11196485		Board, Power   (Replaces: W11176666)			Immediately	$ 370.65
1A	W10811362		Instructions, Installation (ikea)		Appelez-nous	-
1B	W10909665		Use And Care Guide		Appelez-nous	-
1C	W11041532		Cooking Guide Label (english)		Appelez-nous	-
1D	W11051706		Cooking Guide Label (french)		Appelez-nous	-
1E	W11045675		Diagram, Wiring (english & French)		Appelez-nous	-
1F	W11085080		Diagram, Wiring (spanish)		Appelez-nous	-
1G	W10909742		Sheet, Tech (english & French)		Appelez-nous	-
NI	W10737669		Kit, Screw				$ 29.50
NI	W11356974		Harness, Interlock Switch   (Replaces: W10709978)				$ 143.85
NI	W11356982		Harness, Fan & Turntable Motor   (Replaces: W10873988)			Immediately	$ 127.67
NI	W11356971		Harness, Sensor   (Replaces: W10873986)				$ 97.24
NI	W10474490		Harness, Pcb To Inverter				$ 19.91
NI	W11356975		Harness, Lamp   (Replaces: W10873987)		Appelez-nous	-
NI	W11325791		Harness, Jumper (communication)   (Replaces: W11198957)				$ 158.36
NI	W10874026		Harness, Jumper (hsp Raf)				$ 92.77
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
