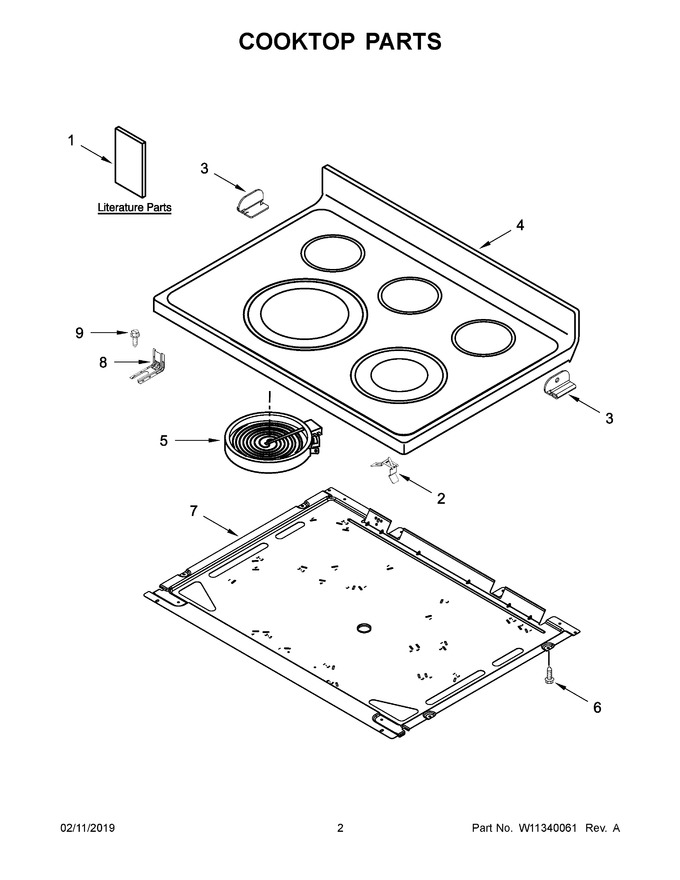

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11085337		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
3	W10607641		Bracket, Cooktop (left)				$ 28.73
4	W11165675		Cooktop (black)   (Replaces: W10865061)				$ 489.97
5	WPW10342780		Element (1300w) (left Rear)   (Replaces: W10342780)			Immediately	$ 130.79
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 122.99
8	W11447673		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.64
9	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 26.33
1A	W11085358		Use And Care Guide		Appelez-nous	-
1B	W11096112		Tech Sheet (english)		Appelez-nous	-
1C	W11096060		Guide, Quick Start (english/french)		Appelez-nous	-
1D	W11097305		Guide, Internet Connectivity		Appelez-nous	-
3A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
5A	W11171119		Element (1200w) (right Rear)   (Replaces: 8273994)			Immediately	$ 164.01
5B	W10823720		Element (3000w) (left Front)   (Replaces: W10187839)			Immediately	$ 302.91
5C	W11517959		Element (3000/1400w) (right Front)   (Replaces: W10275048)			Immediately	$ 121.00
5D	W11041453		Element, Warm Zone (center Rear)   (Replaces: W10799048)				$ 113.96
NI	W11190447		Harness, Cooktop (left)			Immediately	$ 169.55
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11176675		Harness, Main				$ 205.24
NI	W11134592		Harness, Warm Zone				$ 100.51
NI	W11025427		Harness, Wifi Module		Appelez-nous	-
NI	W11188421		Harness, Cooktop (right)			Immediately	$ 183.65
