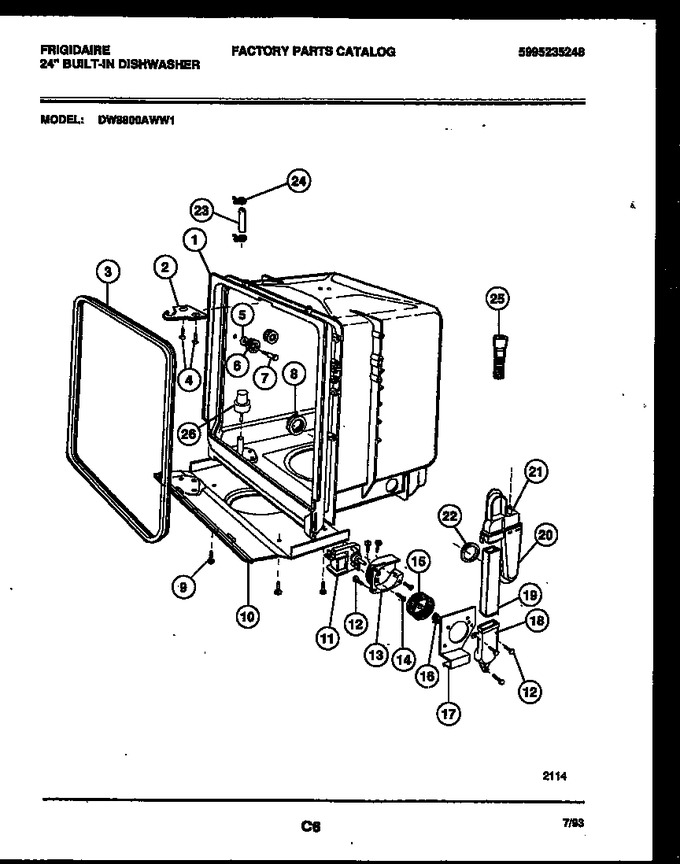

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303943090		Tub Assy W/ Gaskets		Appelez-nous	-
2	5300809610		Door Strike		Appelez-nous	-
3	5300809611		Tub Gasket				$ 41.15
4	154026001		Screw-10 X 5/8`` (2)		Appelez-nous	-
5	5300809968		Washer (8)				$ 43.38
6	5304507405		Tub Roller (8)   (Replaces: 154080001)			Immediately	$ 25.79
7	154047401		Shoulder Screw (8)		Appelez-nous	-
8	5300809724		Plastic Nut-blower		Appelez-nous	-
9	154041001		Screw-10 X 5/8`` (4)		Appelez-nous	-
10	5300809614		Bottom Pan		Appelez-nous	-
11	5300809725		Blower Motor		Appelez-nous	-
12	154102801		Screw - 8 X 1/2`` (6)		Appelez-nous	-
13	5300809726		Housing		Appelez-nous	-
14	5300809731		Screw-8-32 X 3/8``(2)		Appelez-nous	-
15	08016015		Blower Blade				$ 13.05
16	5300809728		Clamp		Appelez-nous	-
17	5300809615		Blower Mounting Plate		Appelez-nous	-
18	5300809729		Power Dry Vent		Appelez-nous	-
19	5300809617		Blower Duct		Appelez-nous	-
20	5300809616		Blower Inlet		Appelez-nous	-
21	5300809730		Cap		Appelez-nous	-
22	5300809618		Blower Gasket		Appelez-nous	-
23	5300809619		Water Inlet Tubing		Appelez-nous	-
24	5300807813		Clamp (2)		Appelez-nous	-
25	3100021801		Drain Hose				$ 73.00
26	154144301		Float		Appelez-nous	-
*81127	5303212479		Tub Insulation		Appelez-nous	-
