SELECT A DIAGRAM
02 - Console And Control Parts
03 - Cam
04 - Door Parts
05 - Tub And Frame Parts
06 - Motor Pump Parts
07 - Power Dry And Motor Parts
08 - Racks And Trays
SELECT A DIAGRAM
New Model Search:

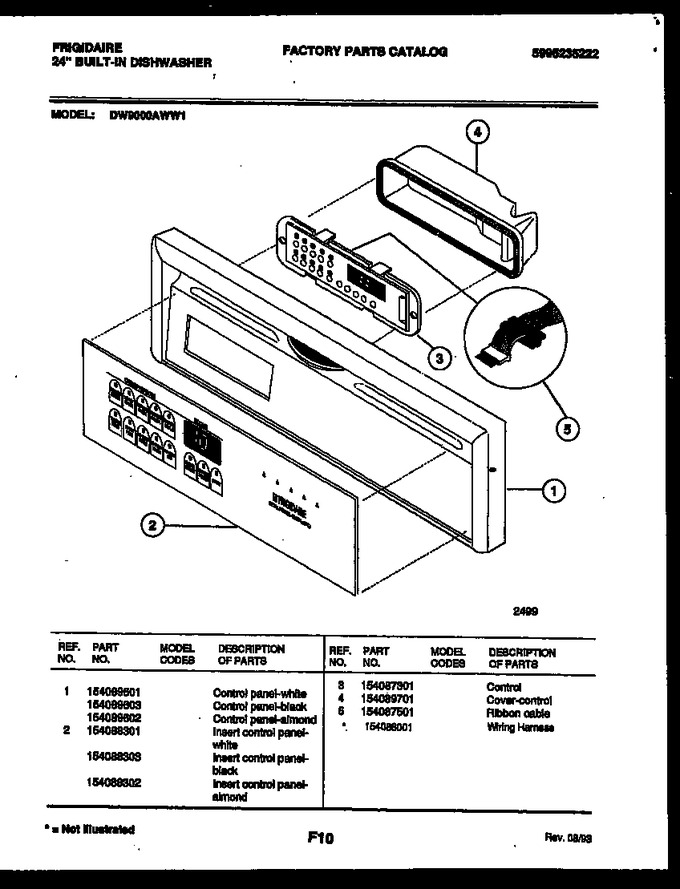

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 154089602 | Control Panel - Almond |
|
- | |||||
| 2 | 154088302 | Insert Control Panel-almond |
|
- | |||||
| 3 | 154087301 | Control |
|
- | |||||
| 4 | 154089701 | Cover, Control |
|
- | |||||
| 5 | 154087501 | Ribbon Cable |
|
$ 77.28 | |||||
| *77352 | 154088001 | Wiring Harness |
|
- |
