02 - Backguard
03 - Cooktop Parts
04 - Broiler Drawer Parts
05 - Door Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:

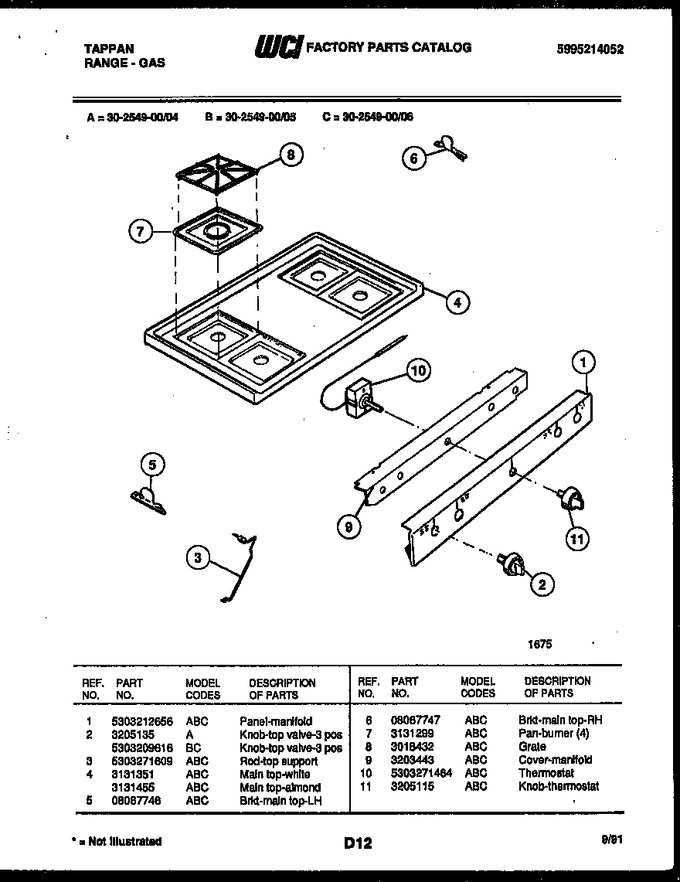

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303212656 | Panel-manifold |
|
- | |||||
| 2 | 3205135 | Knob-top Valve 3 Pos |
|
- | |||||
| 3 | 5303271609 | Rod-top Support |
|
- | |||||
| 4 | 3131351 | Main Top,white |
|
- | |||||
| 5 | 08067746 | Brkt, Main Top (lh) |
|
- | |||||
| 6 | 08067747 | Brkt, Main Top (rh) |
|
- | |||||
| 7 | 3131299 | Pan-burner (4) |
|
- | |||||
| 8 | 3018432 | Grate |
|
- | |||||
| 9 | 3203443 | Cover-manifold |
|
- | |||||
| 10 | 316032411 | Thermostat (Replaces: 5303271464) |
|
Immediately | $ 165.14 | ||||
| 11 | 3205115 | Knob, Thermostat |
|
- |
