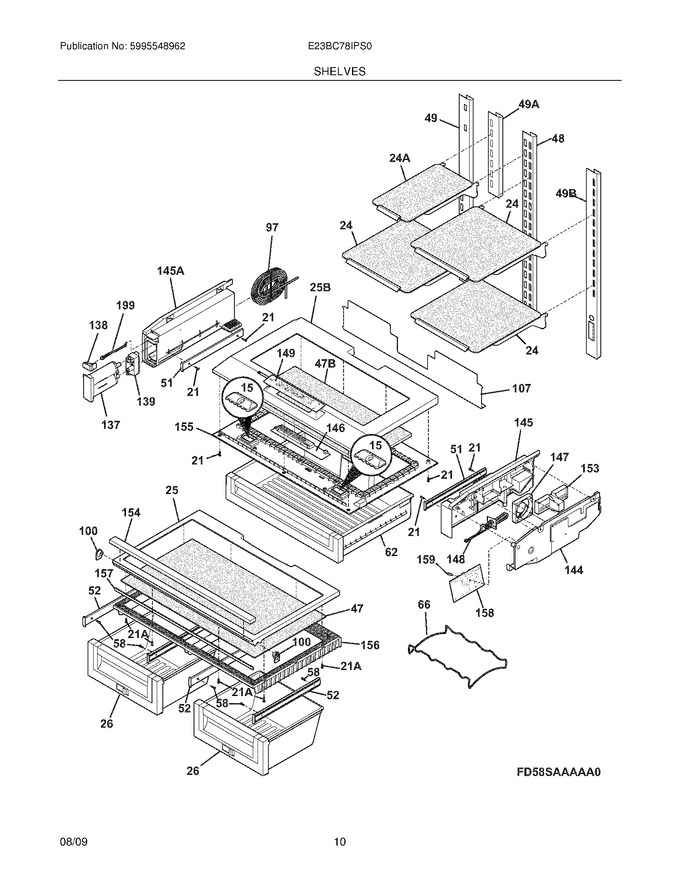

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | 7241891101 | Light-led |
|
- | |||||
| 21 | 241953902 | Screw,no.8 - 18 X .380 (Replaces: 7241953902) |
|
Immediately | $ 17.11 | ||||
| 24 | 7241839902 | Shelf-glass,formed |
|
- | |||||
| 25 | 7241802201 | Frame-crisper Cover,upper |
|
- | |||||
| 26 | 7241772802 | Pan-crisper |
|
- | |||||
| 47 | 7241768802 | Glass-crisper Frame |
|
- | |||||
| 48 | 7241774201 | Channel-shelf Mtg,center |
|
- | |||||
| 49 | 7241773801 | Channel-shelf Mtg,side ,(2) ,lh |
|
- | |||||
| 51 | 7241816101 | Slide-deli |
|
- | |||||
| 52 | 7241769002 | Slide-crisper Cover |
|
- | |||||
| 58 | 7241941202 | Screw,8-18 X 3/8 |
|
- | |||||
| 62 | 7241827201 | Pan-deli |
|
- | |||||
| 66 | 241748901 | Rack-wine (Replaces: 7241748901) |
|
$ 77.97 | |||||
| 97 | 7241821202 | Water Tank |
|
- | |||||
| 100 | 241768601 | Support-crspr Cover (Replaces: 7241768601) |
|
$ 19.13 | |||||
| 107 | 7241925901 | Cover-water Tank |
|
- | |||||
| 137 | EWF01C | Filter,water ,carbon Cassette ,front ,with O`rings (Replaces: 7241932301) |
|
Immediately | $ 75.59 | ||||
| 138 | 7241885901 | Button-filter Release |
|
- | |||||
| 139 | 240396002 | Base-water Filter (Replaces: 7240396002) |
|
Immediately | $ 119.66 | ||||
| 144 | 7241803901 | Cover-deli Air Control |
|
- | |||||
| 145 | 7241803801 | Housing-deli Air Control |
|
- | |||||
| 148 | 7241782001 | Heater-ptd,115 V |
|
- | |||||
| 154 | 241879902 | Trim-crisper Cover (Replaces: 7241879901) |
|
$ 39.44 | |||||
| 155 | 241803403 | Frame-deli Cover,lower (Replaces: 7241803401) |
|
$ 148.13 | |||||
| 156 | 7241872002 | Frame-crisper Cover,lower |
|
- | |||||
| 157 | 7241872201 | Beam-crisper Cover |
|
- | |||||
| 159 | 7241815401 | Cap,pcba Hold Down |
|
- | |||||
| 199 | 7240397501 | Rod |
|
- | |||||
| 24A | 7241839904 | Shelf-glass,formed |
|
- | |||||
| 25B | 7241803301 | Frame-deli Cover,upper |
|
- | |||||
| 47B | 7241967401 | Glass,2 Pane Insulatd |
|
- | |||||
| 49A | 7241865701 | Channel-shelf Mtg,center ,icemaker Shelf |
|
- | |||||
| 49B | 7241774301 | Channel-shelf Mtg,side ,rh |
|
- | |||||
| F137 | 7240526901 | O-ring,wtr Filter Base |
|
- | |||||
| F139 | 7241858401 | Screw,no.6 X 1/2 Hilo |
|
- | |||||
| F145 | 7242058701 | Support,rail |
|
- | |||||
| F146 | 7241822602 | Harness-power Ptd |
|
- | |||||
| F146 | 7241958401 | · Control-electronic,ptd |
|
- | |||||
| F147 | 7241936201 | Damper-rubber,ptd Fan |
|
- | |||||
| F147 | 7241825704 | Fan Assembly,motor ,with Blade |
|
- | |||||
| F148 | 7240451503 | Screw,ind Hex Wshr Hd ,8-32 X 0.375 ,trilobe |
|
- | |||||
| F149 | 7242025902 | Overlay,electronic ,membrane Switch |
|
- | |||||
| F153 | 7241775301 | Motor-damper |
|
- | |||||
| F153 | 7241835402 | Harness-wiring,mixing Valve |
|
- | |||||
| F158 | 7241955003 | Board-main Power,ptd |
|
- | |||||
| F199 | 7240398401 | Spring-filter Release Rod |
|
- | |||||
| F24A | 7241809204 | · Trim-shelf,hand Grip |
|
- | |||||
| F25B | 7241862501 | Harness-wiring,ptd Main W/led |
|
- | |||||
| F25B | 7241862601 | Harness-wiring,ptd W/led |
|
- | |||||
| F47B | 75304469950 | Sealant,rubber Silicone |
|
- | |||||
| NI | 7241809203 | · Trim-shelf,hand Grip |
|
- | |||||
| NI | 7242028505 | Energy Guide |
|
- |
