SELECT A DIAGRAM

01 - Cover


03 - Freezer Drawer - Basket


05 - Fresh Food Door


07 - Cabinet


09 - Shelves


11 - System


13 - Controls & Ice Dispenser


15 - Ice Container

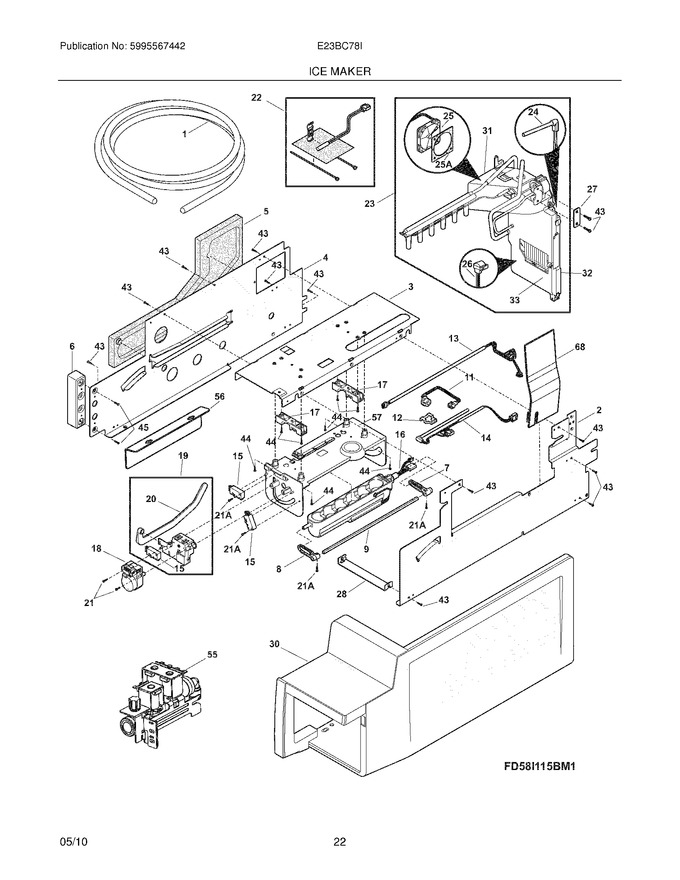

17 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976426		Tube-water Inlet,59.00`` ,yellow				$ 13.42
2	241937302		Frame-icemaker,rh		Appelez-nous	-
3	241828501		Frame-icemaker,top				$ 158.43
4	241937502		Frame-icemaker,lh		Appelez-nous	-
5	241870701		Duct-air				$ 73.15
6	241954001		Spacer,icemaker				$ 16.07
7	241939001		Bracket,ice Tray				$ 62.11
8	241827701		Bracket,ice Tray				$ 47.35
9	241841701		Shaft,motor ,icemaker				$ 94.84
12	241997601		Clamp,strain Relief				$ 18.53
14	241983201		Heater,harvest ,115 V				$ 215.84
16	242043902		Tray-ice   (Replaces: 241827901)				$ 348.09
17	241828101		Bracket-evap Coil				$ 11.77
19	241939901		Shut-off Arm Assembly				$ 173.36
20	241839501		Shut-off Arm				$ 23.91
21	242024101		Screw				$ 2.72
23	5303918444		Evaporator Kit,ice Maker				$ 649.45
26	241962601		Thermistor				$ 187.64
27	241963401		Gasket,ice Maker		Appelez-nous	-
28	241828701		Brace,icemaker ,front				$ 21.03
30	242016101		Cover,icmkr & Bucket		Appelez-nous	-
31	241925102		Shroud-evap Fan Mtg,ice Maker		Appelez-nous	-
32	241925201		Cover,rear ,i/mk Evaporator		Appelez-nous	-
33	241924701		Cover,front ,i/mk Evaporator		Appelez-nous	-
43	218359202		Screw,pan Head ,8-32 X 0.250				$ 10.63
44	241870406		Screw		Appelez-nous	-
45	5304453707		Screw   (Replaces: 241641501)			Immediately	$ 15.92
56	241865501		Rail,ice Maker ,rh ,vertical				$ 20.46
57	241816901		Bracket,evap Assembly				$ 142.74
68	241969701		Deflector-water		Appelez-nous	-
21A	242024401		Screw				$ 4.73
25A	241962301		Gasket-evap Fan,icemaker		Appelez-nous	-
F11	241983101		Bimetal-heater,harvest				$ 255.48
F13	241921501		Harness-wiring,ice Maker				$ 220.10
F15	241870101		Switch				$ 138.08
F18	241817701		Motor-ice Maker				$ 103.18
F22	5303918416		Thermistor Kit,t-3 Suction Lin ,icemaker				$ 105.16
F24	241962501		Heater-defrost,icemaker				$ 248.07
F25	241870801		Fan				$ 174.77
F55	242252702		Valve-water,triple Solenoid   (Replaces: 241734301)			Immediately	$ 132.71
FNI	5303918446		Heat Exchanger,icemaker				$ 401.86
NI	5303918467		Heater Kit, Eev				$ 85.77
NI	241870304		Screw		Appelez-nous	-
NI	241965907		Tube-water,formed ,64.86``   (Replaces: 241965903)				$ 21.23
NI	241920101		Tube-water Inlet,green ,valve To I.m.				$ 46.64
NI	218976425		Tube-water Inlet,51.00`` ,brown/tan				$ 101.35
NI	218709101		Screw,hex Head ,10-32 X 0.500				$ 6.38
NI	240363602		Screw-shoulder				$ 13.65
NI	5303918484		Chute-ice   (Replaces: 242105401)				$ 30.47
NI	241806601		Connector-water,straight   (Replaces: 242103001)			Immediately	$ 70.56
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	241641502		Screw				$ 8.51
NI	242015401		Screw,8-18b X 0.500		Appelez-nous	-
NI	241820701		Harness-wiring,icmkr				$ 125.83

    View Diagram in Separate Window       Print Part List
