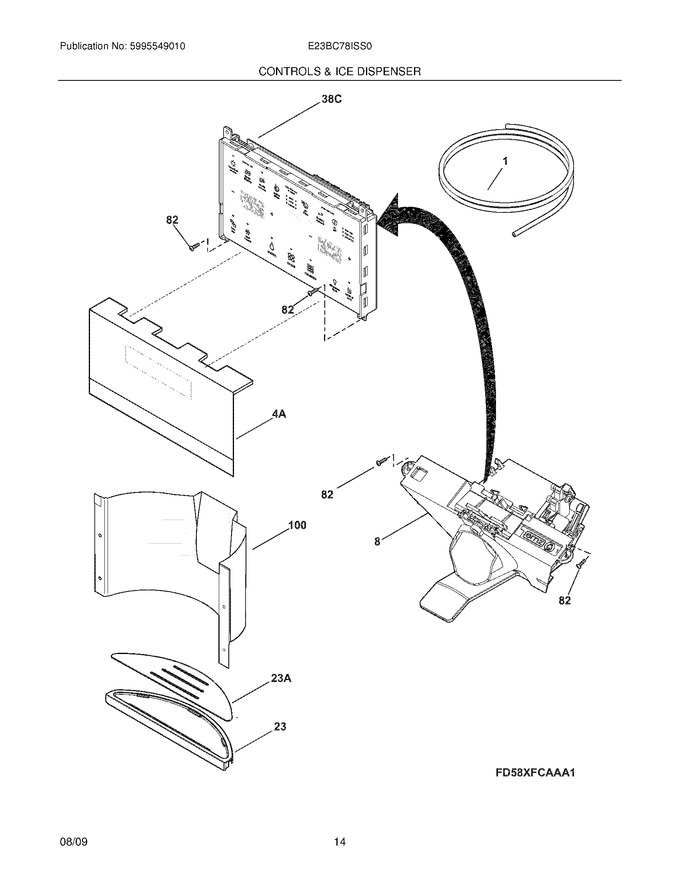

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7218976426 | Tube-water Inlet,59.00`` ,yellow |
|
- | |||||
| 8 | 7241753407 | Module-dispenser,brushed Plated |
|
- | |||||
| 23 | 7241912301 | Drip Tray,ss Brushed |
|
- | |||||
| 82 | 241953902 | Screw,no.8 - 18 X .380 (Replaces: 7241953902) |
|
Immediately | $ 17.11 | ||||
| 100 | 7241912201 | Liner-sump,ss Brush |
|
- | |||||
| 23A | 7241987001 | Drip Tray,stainless |
|
- | |||||
| 38C | 7241836010 | Board-control |
|
- | |||||
| 4A | 7241912102 | Trim,dispenser |
|
- | |||||
| FNI | 7242016001 | Harness-wiring,dispenser |
|
- | |||||
| NI | 7241920101 | Tube-water Inlet,green ,valve To I.m. |
|
- | |||||
| NI | 7241965903 | Tube-water,formed ,64.86`` |
|
- | |||||
| NI | 7218976425 | Tube-water Inlet,51.00`` ,brown/tan |
|
- | |||||
| NI | 7241510902 | Harness-dispenser |
|
- | |||||
| NI | 75303918450 | Dispenser Heater Kit,115 |
|
- |
