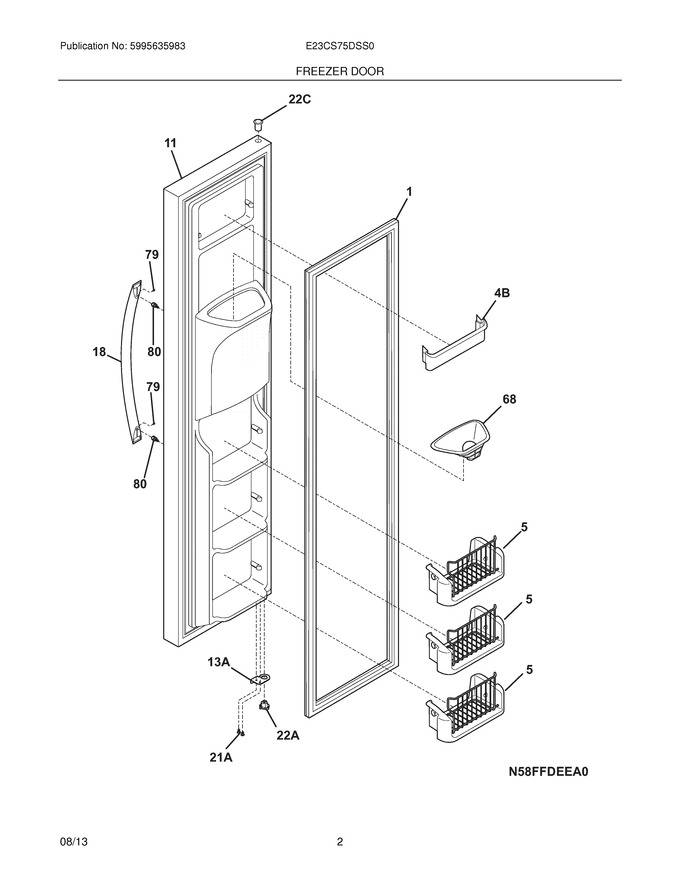

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 5 | 241545201 | Bin-wire,tilt-out |
|
- | |||||
| 11 | 241526703 | Door-frzr,stainless Steel ,complete Assy |
|
- | |||||
| 18 | 241531401 | Handle-door,stainless Steel ,with Set Screw |
|
$ 330.10 | |||||
| 68 | 240467701 | Chute-ice |
|
- | |||||
| 79 | 218755402 | Screw-set,10-32 X .500 In |
|
Immediately | $ 33.00 | ||||
| 80 | 241531501 | Screw-shoulder,no.10 Ab ,handle Mounting |
|
- | |||||
| 13A | 240581906 | Door Stop,black ,frzr |
|
$ 73.00 | |||||
| 21A | 5303323137 | Screw,10-32 X 1/2 (Replaces: 240598401) |
|
$ 11.88 | |||||
| 22A | 242000501 | Bearing-hinge(frz),closer (Replaces: 240328202) |
|
$ 7.14 | |||||
| 22C | 240328404 | Bearing-hinge,black ,upper |
|
$ 22.87 | |||||
| 4A | 241545101 | Support-tilt Out Bin |
|
- | |||||
| 4B | 241511602 | Bin-door (Replaces: 241511604) |
|
$ 52.72 | |||||
| F1 | 241510202 | Gasket-frzr Door,white ,magnetic |
|
$ 286.53 | |||||
| NI | 5303918256 | Dispenser Heater Kit |
|
$ 474.16 | |||||
| NI | 240545201 | Connector-water,straight (Replaces: 240545101) |
|
$ 73.71 | |||||
| NI | 240552102 | Harness-wiring,door |
|
$ 77.60 |
