Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 56128 Bumper Pad Special Order $ 6.95

2 56079 Panel Locator In-Stock Immediately $ 6.95

3 39733 Screw Special Order $ 6.95

4 36226 Bumper Pad Special Order $ 3.45

5 WP3390631 Screw   (Replaces: 51780) Special Order $ 7.04

6 D501086 Screw In-Stock Immediately $ 6.95

7 27103 Hold-down Lug Hinge Special Order $ 3.17

8 803260R1 Warning Label   (Replaces: 803260) Special Order $ 1.72

9 38612WP Service Cabinet Kit In-Stock Immediately $ 347.84

10 WP27001200 Screw   (Replaces: 27196) Special Order $ 6.91

11 34443 Leg And Stabilizer Assembly In-Stock Immediately $ 44.62

12 35148 Screw Special Order $ 6.95

13 4098G Bracket (comment: Right)   (Replaces: 36036) Special Order $ 36.76

14 34318 Rubber Foot In-Stock Immediately $ 4.74

15 39788 Base Assembly Special Order $ 266.65

16 22003428 Leveling Leg   (Replaces: 34319) In-Stock Immediately $ 14.41

17 WP210385 Nut   (Replaces: 21899) Special Order $ 6.26

18 37937 Friction Ring In-Stock Immediately $ 30.29

19 566P3 Adjustable Leg Extension Kit Special Order $ 76.26

20 36037 Bracket (comment: Left) Special Order $ 77.94

21 28102 Panel Locator Appelez-nous -
22 204552 Front Panel Pad   (Replaces: 36204) Special Order $ 1.98

23 38272 Screw Special Order $ 11.04

24 204870 Front Panel   (Replaces: 38335WP) In-Stock Immediately $ 183.06

25 - Not On Your Model Appelez-nous -
26 35865 Hold-down Clip (comment: New Style Panel Attachment) Special Order $ 6.95

27 35097 Front Panel Brace Special Order $ 5.54

NA 122P4P Porcelain Touch-up Paint Special Order $ 53.58


    View Diagram in Separate Window     Print Icon   Print Part List

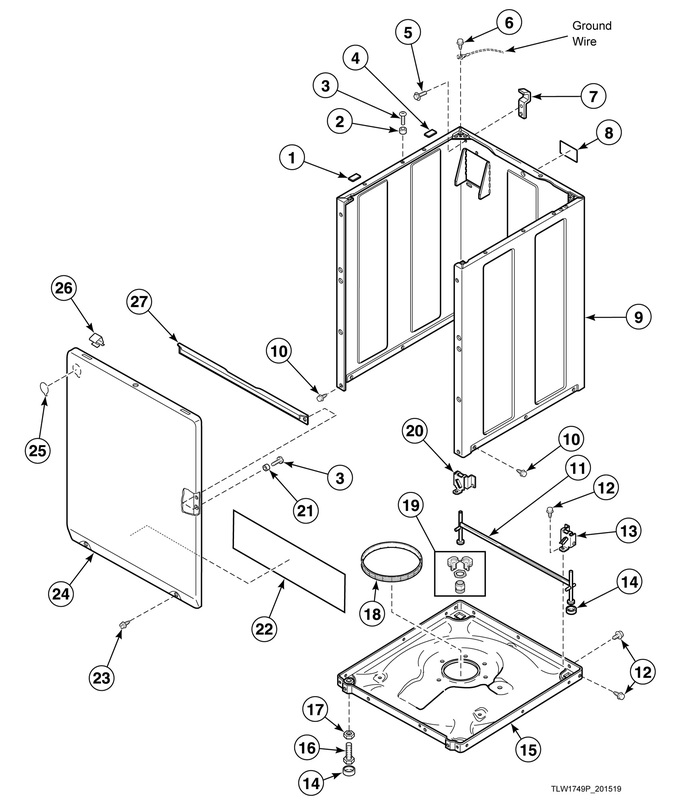

Diagram for AWN311SP111TW01
