Agitator, Drive Bell, Hub And Lip Seal Kit And Washtub


Drain Hose And Siphon Break Kit


Fill Hose, Mixing Valve-to-tub Cover Hose, Mixing Valve And bracket - All Models Except Aws48nw And Aws53nw


Front Panel, Base Assembly And Cabinet Kit


Graphic Panel, Control Support Panel And Controls


Lead-in Cord And Terminals


Lid Switch Assembly


Mixing Valve And Motor Connection Blocks, Terminals And Extractor Tool


Motor, Mounting Bracket, Belt, Pump And Idler Assembly


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And Counterweight


Shipping Brace, Plug And Special Tools


Special Tools


Terminals


Top, Lid And Hood Back Panel


Transmission Assembly


Weldment And Bearing Assembly, Brake And Pulley


Wire Harnesses And Wires

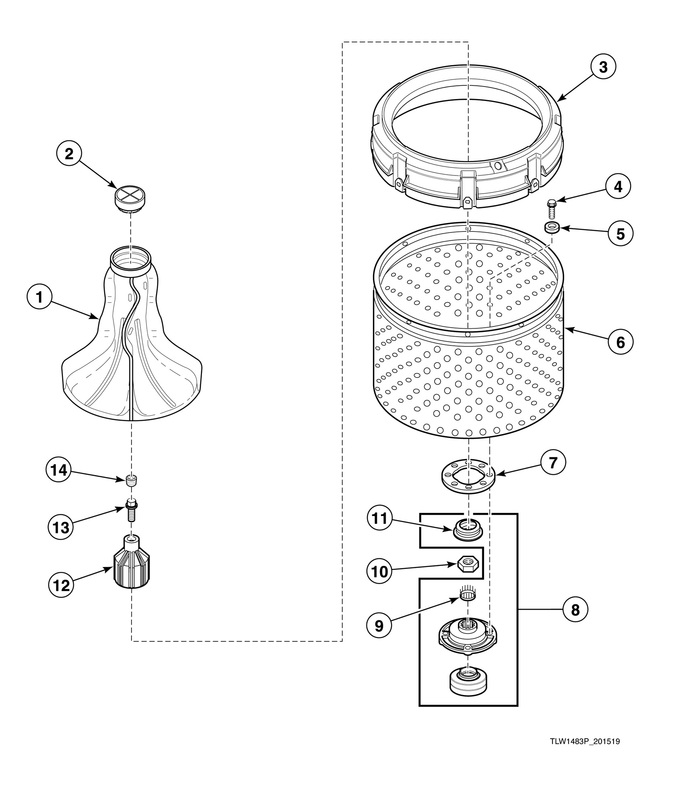

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33174		Agitator				$ 40.04
2	DE81-08574A		Agitator Cap   (Replaces: 36515)				$ 109.32
3	205888		Balance Ring Assembly   (Replaces: 39837)			Immediately	$ 88.26
4	WPW10116787		Screw   (Replaces: 27202)				$ 19.26
5	28094		Washer (comment: Rubber)		Appelez-nous	-
6	204429P		Tub Assembly (comment: Blue Porcelain)   (Replaces: 39252P)				$ 412.62
7	39122		Washtub Gasket				$ 9.68
8	200996P		Sealant (comment: Use With Hub And Lip Seal Kit)			Immediately	$ 180.93
8	766P3A		Hub And Lip Seal Kit (comment: Do Not Use Any Sealant Other Than 200996p Sealant; Includes Item 12 And Installation Tool)			Immediately	$ 225.45
9	29728		Spline Insert			Immediately	$ 6.95
10	29220		Nut			Immediately	$ 6.95
11	DE81-10150A		Bell And Transmission Tube Seal   (Replaces: 36425)				$ 128.20
12	39508P		Drive Bell And Seal Kit (comment: Includes Items 11, 13 And 14)			Immediately	$ 45.90
13	39432		Screw				$ 6.95
14	DE81-08662A		Bell Plug   (Replaces: 36511)				$ 28.04
