| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
205703 |
|
Valve To Inlet Hose (comment: Starting Serial No. 1810000001) (Replaces: 204400) |
|
Appelez-nous
|
- |
|
|
|
| 1 |
202884 |
|
Valve To Inlet Hose (comment: Through Serial No. 1810000001) |
|
|
|
$ 10.43 |
|
|
| 2 |
WP27001200 |
 |
Screw (Replaces: 33562) |
|
|
|
$ 6.91 |
|
|
| 3 |
800803 |
 |
Hose Clamp |
|
|
|
$ 6.58 |
|
|
| 4 |
39407 |
|
Mixing Valve Mounting Bracket (comment: Through Serial No. 1810000001) |
|
|
|
$ 6.95 |
|
|
| 4 |
203558 |
|
Mixing Valve Mounting Bracket (comment: Starting Serial No. 1810000001) |
|
Appelez-nous
|
- |
|
|
|
| 5 |
F200116 |
|
Water Hose (comment: 5 Feet) |
|
|
|
$ 28.46 |
|
|
| 6 |
803615 |
 |
Washer (comment: Filter Screen) |
|
|
Immediately |
$ 4.23 |
|
|
| 6 |
802254 |
|
Washer (comment: Flow Restrictor; Water Pressure Reducer; Available For Water Pressure Up To But Not Exceeding 120 Psi) |
|
|
|
$ 49.18 |
|
|
| 7 |
204102 |
|
Fill Hose (comment: Marked For Hot Water; 4 Feet; 2 Bspp Thread Hose Couplings And 1 Ght Thread Hose Coupling) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
204103 |
|
Fill Hose (comment: Marked For Cold Water; 4 Feet; 2 Bspp Thread Hose Couplings And 1 Ght Thread Hose Coupling) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
203718 |
|
Fill Hose (comment: Marked For Hot Water; 4 Feet; 1 Bspp Thread Hose Coupling And 1 Ght Thread Hose Coupling) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
203750 |
|
Fill Hose (comment: Marked For Cold Water; 4 Feet; 1 Bspp Thread Hose Coupling And 1 Ght Thread Hose Coupling) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
203719 |
|
Fill Hose (comment: Marked For Hot Water; 4 Feet; 2 Ght Thread Hose Couplings) |
|
|
|
$ 24.64 |
|
|
| 7 |
203720 |
|
Fill Hose (comment: Marked For Cold Water; 4 Feet; 2 Ght Thread Hose Couplings) |
|
|
|
$ 24.64 |
|
|
| 8 |
20290 |
|
Washer |
|
Appelez-nous
|
- |
|
|
|
| 9 |
24122 |
|
Mixing Valve Screen |
|
|
|
$ 8.42 |
|
|
| 10 |
205765 |
|
Mixing Valve (comment: Starting Serial No. 1810000001) (Replaces: 203741) |
|
|
Immediately |
$ 56.48 |
|
|
| 10 |
205547P |
 |
Mixing Valve (comment: Through Serial No. 1810000001) (Replaces: 202395P) |
|
|
Immediately |
$ 57.57 |
|
|
| 11 |
39397 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 12 |
36801 |
|
Hose Clamp |
|
|
Immediately |
$ 9.22 |
|
|
| 13 |
- |
|
Not On Your Model |
|
Appelez-nous
|
- |
|
|
|

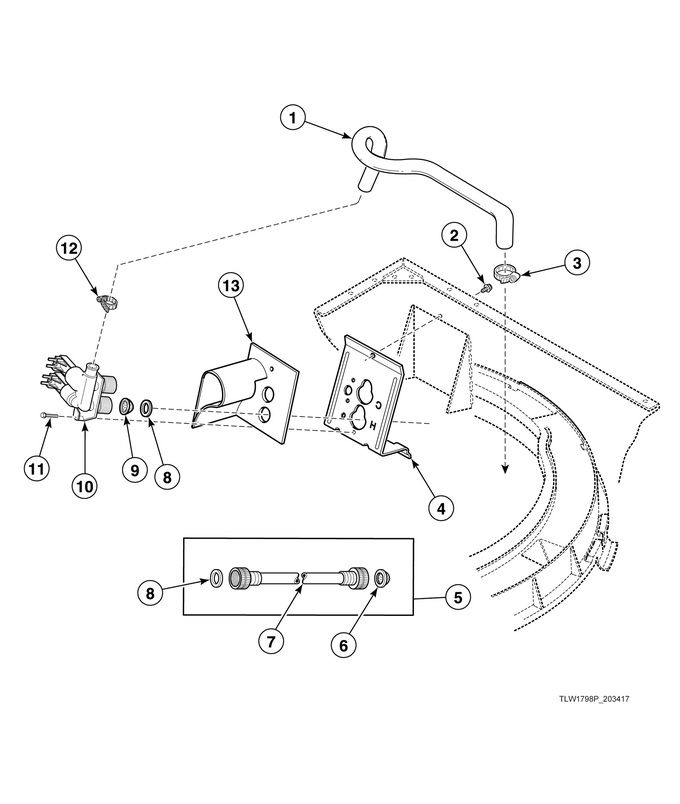

View Diagram in Separate Window
