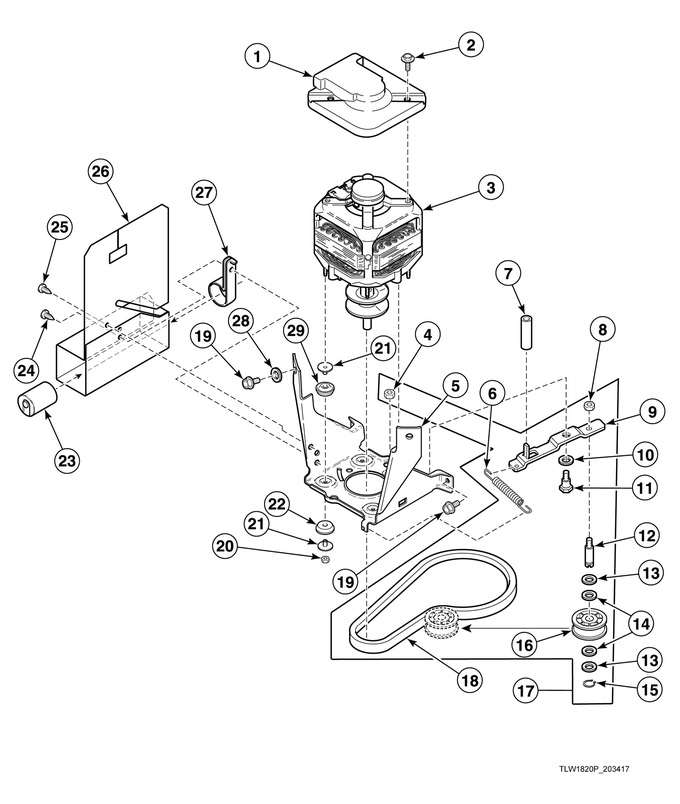

Motor, Mounting Bracket, Belt, And Idler Assembly


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight


Output Board, Wire Harnesses And Wires


Shipping Brace, Plug And Special Tools


Special Tools


Terminals


Top, Lid And Hood Back Panel


Transmission Assembly


Weldment And Bearing Assembly, Brake And Pulley


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	34754		Motor Shield				$ 6.95
2	WP4312464		Screw   (Replaces: 36639)				$ 6.26
3	202544P		Motor Assembly (comment: 2 Speed; 240volt/50 Hertz)				$ 1,151.32
4	WPW10139757		Nut   (Replaces: 52566)				$ 7.16
5	200941		Motor Mount Bracket				$ 46.62
6	201189		Idler Lever Spring				$ 6.18
7	202333		Tube		Appelez-nous	-
8	56156		Nut   (Replaces: 28803)				$ 6.95
9	38011		Idler Lever			Immediately	$ 6.95
10	81392		Washer			Immediately	$ 6.95
11	27229		Screw			Immediately	$ 6.95
12	WP489128		Idler Shaft   (Replaces: 210186)				$ 9.79
13	D504082		Washer			Immediately	$ 4.23
14	WP233520		Washer (comment: Nylatron)   (Replaces: 52549)			Immediately	$ 7.16
15	WP23748		Retaining Ring   (Replaces: 23748)			Immediately	$ 10.75
16	205552P		Idler Pulley   (Replaces: 38225P)			Immediately	$ 19.34
17	202972		Idler Lever And Belt Kit (comment: Includes Items 4, 6, 8-16 And 18)				$ 99.79
18	200923		Agitate And Spin Belt			Immediately	$ 41.26
19	35369		Screw			Immediately	$ 6.95
20	WP3400029		Nut   (Replaces: 35423)			Immediately	$ 6.98
21	204449CP		Isolator Post   (Replaces: 38325)		Appelez-nous	-
22	204449CP		Isolator Assembly   (Replaces: 204062)		Appelez-nous	-
23	203140		Capacitor			Immediately	$ 25.88
24	31645		Screw				$ 3.34
25	Sub. To D513139P		Screw   (Replaces: 52909)		Appelez-nous	-
26	203053		Motor Drip Shield		Appelez-nous	-
27	357030		Capacitor Clamp   (Replaces: 37535)				$ 18.98
28	37772		Washer				$ 6.95
29	204449CP		Motor Mount   (Replaces: 38395)		Appelez-nous	-
