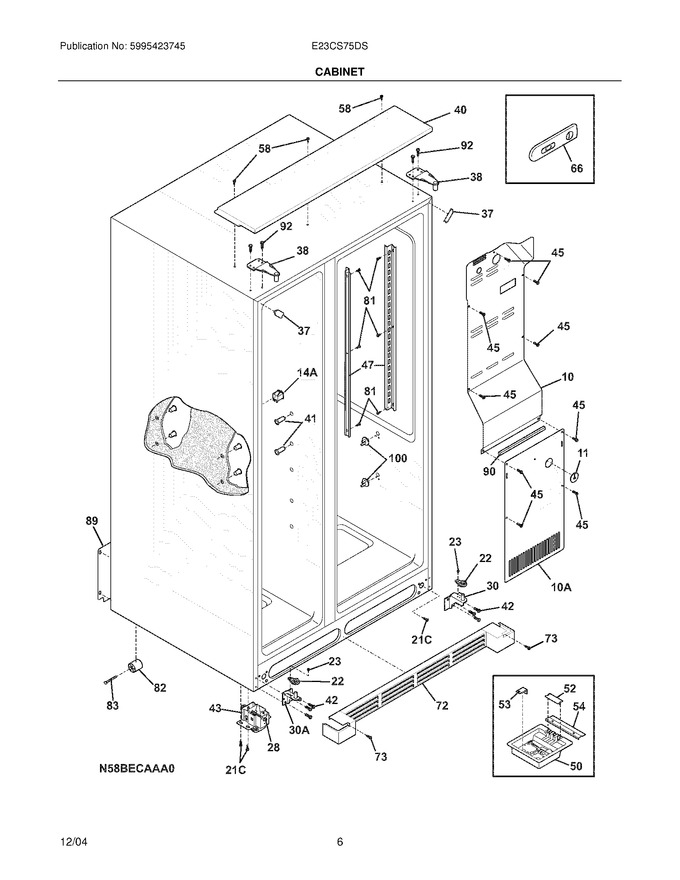

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	241509802		Cover-air Duct		Appelez-nous	-
11	241529301		Plug-hole,factory Test		Appelez-nous	-
22	240457701		Plate-door Closer			Immediately	$ 56.70
23	240402701		Screw-no.10-32 X 1/4 Flat Hd				$ 21.79
28	5304499445		Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special   (Replaces: 240335501)			Immediately	$ 31.33
30	5303918455		Bracket-lower Hinge, Ref   (Replaces: 240419101)				$ 142.04
37	240337605		Trim-cabinet Corner,silver ,(2)				$ 6.67
38	240327207		Bracket-upper Hinge   (Replaces: 240327201)			Immediately	$ 57.50
40	241551301		Cover-upper Hinge,stainless Steel		Appelez-nous	-
41	241550801		Grommet-shelf Mtg,1.40`` Long				$ 63.70
42	240578902		Screw-hinge Mtg,hex Head ,1/4-20 X 5/8   (Replaces: 240578901)			Immediately	$ 14.18
43	5304499445		Roller Assy, Front - If Fixed Rollers W/ Leveling Screws Order 241559601(rh) And 241559602(lh).   (Replaces: 240335003)			Immediately	$ 31.33
45	241500303		Screw,hex Washer Head ,8-18ab X 0.500   (Replaces: 241500301)			Immediately	$ 4.55
47	241513001		Channel-shelf Mtg,side ,(2)				$ 112.24
50	241511101		Board-main Power				$ 466.33
52	241524801		Seal-mother Board Housing		Appelez-nous	-
53	241509101		Bracket		Appelez-nous	-
54	241532401		Channel				$ 30.47
58	241547101		Screw-no.10-32 X 1/2		Appelez-nous	-
66	241513602		Damper-meat Keeper				$ 56.94
72	241554701		Grille/kickplate		Appelez-nous	-
73	241548001		Screw,10-32 X 1/2		Appelez-nous	-
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
89	5304520905		Cover Access   (Replaces: 241574602)			Immediately	$ 74.03
90	218249808		Seal-coil Cover		Appelez-nous	-
92	241710601		Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg   (Replaces: 216850900)				$ 13.46
100	241993001		Support,crisper Cover ,rear ,(4)   (Replaces: 240350802)			Immediately	$ 19.23
100	241993101		Support,crisper Cover ,front ,(4)   (Replaces: 240423701)			Immediately	$ 5.62
10A	240475908		Cover-evap Coil,lower		Appelez-nous	-
14A	241547902		Switch-light/lamp,frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
30A	5303918455		Bracket-lower Hinge   (Replaces: 240419102)				$ 142.04
NI	241591701		Louver		Appelez-nous	-
NI	241532501		Clip-harness		Appelez-nous	-
NI	241550701		Grommet-shelf Mtg,.96`` Long				$ 18.20
NI	240396801		Clamp,tube/wiring ,nylon ,black/natural				$ 19.13
NI	240494001		Plug,button ,cab Liner Holes ,(2)   (Replaces: 240479601)			Immediately	$ 18.20
NI	241581801		Paint-pen			Immediately	$ 46.10
NI	241524802		Seal,housing		Appelez-nous	-
