Diagram for Graphic Panel, Control Support Panel And Controls Starting serial no. 1810000001
Graphic Panel, Control Support Panel And Controls Starting serial no. 1810000001

Diagram for Graphic Panel, Control Support Panel And Controls Through serial nos. beginning 1809
Graphic Panel, Control Support Panel And Controls Through serial nos. beginning 1809

Diagram for Lead-in Cord And Cable Ties
Lead-in Cord And Cable Ties

Diagram for Lid Switch Assembly
Lid Switch Assembly

Diagram for Motor, Mounting Bracket And Belt
Motor, Mounting Bracket And Belt

Diagram for Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight
Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight

Diagram for Shipping Brace, Plug And Special Tools
Shipping Brace, Plug And Special Tools

Diagram for Top, Lid And Hood Back Panel
Top, Lid And Hood Back Panel

Diagram for Weldment And Bearing Assembly, Drive Shaft And Pulley
Weldment And Bearing Assembly, Drive Shaft And Pulley


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 203730W End Cap (comment: Left) Special Order $ 11.19

2 203840 Control Support Panel Special Order $ 41.53

3 203799 Screw Special Order $ 0.49

4 36335 Temperature Switch Special Order $ 59.62

5 36335 Temperature Switch (comment: For Load Size Knob) Special Order $ 59.62

6 204396 Led Display Assembly Special Order $ 26.81

7 203976 Cycle Selector Switch Special Order $ 37.15

8 203729W End Cap (comment: Right) Special Order $ 11.81

9 804608 Screw Special Order $ 0.49

10 204163P Control Assembly   (Replaces: 204163) Special Order $ 287.65

11 WP90767 Screw   (Replaces: 23962) In-Stock Immediately $ 7.04

12 35358 Hold-down Clip Special Order $ 6.95

13 203735 Graphic Panel Special Order $ 139.23

14 806597 Knob Assembly In-Stock Immediately $ 12.08

15 203935 Push Button Switch In-Stock Immediately $ 10.13

16 203934 Rocker Switch Special Order $ 5.03

17 D501086 Screw In-Stock Immediately $ 6.95


    View Diagram in Separate Window     Print Icon   Print Part List

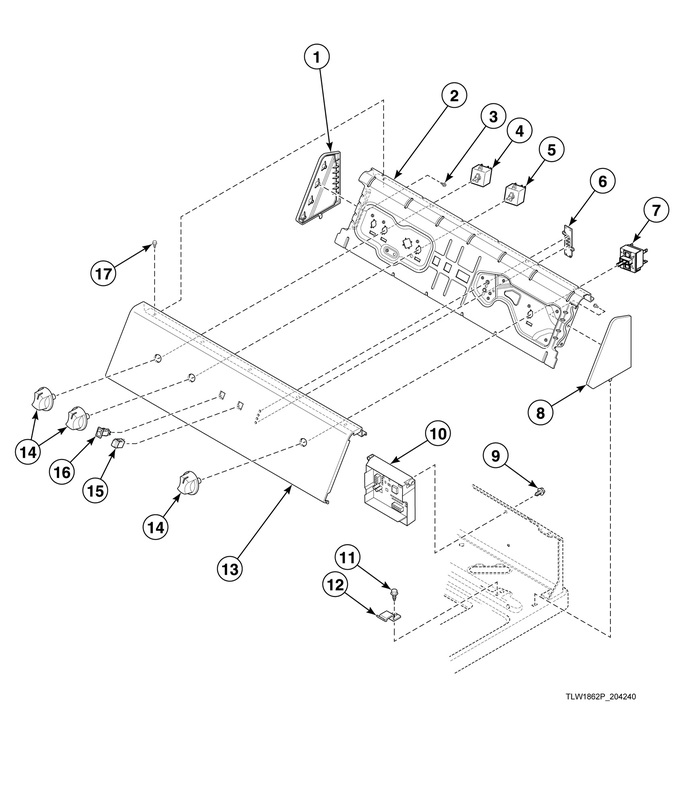

Diagram for AWN63RSN115TW01
