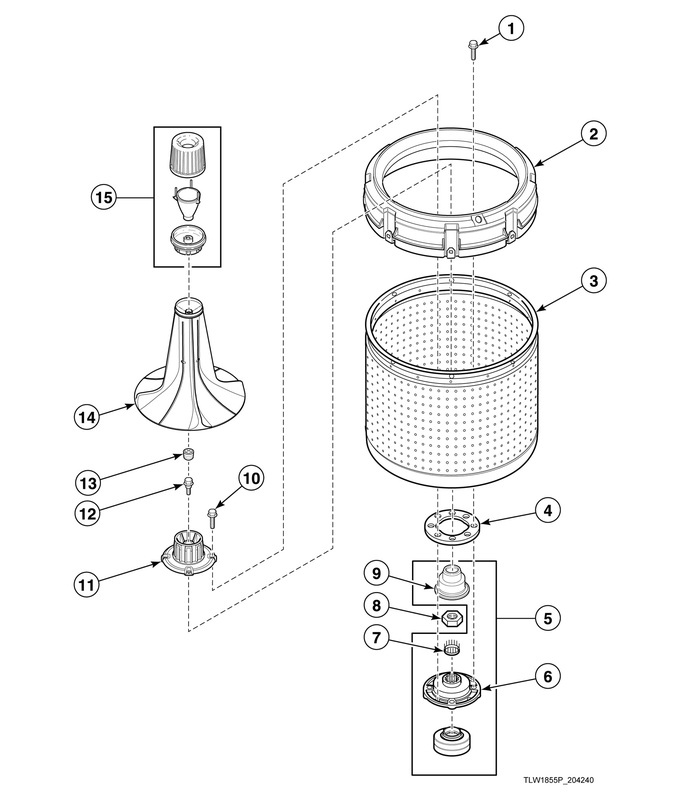

Agitator, Fabric Softener Dispenser, Drive Bell, Hub and lip seal kit and washtub


Drain Pump, Drain Hose And Siphon Break Kit


Fill Hose, Mixing Valve-to-tub Cover Hose, Mixing valve and bracket


Front Panel, Base Assembly And Cabinet Kit


Graphic Panel, Control Support Panel And Controls And Electronic


Lead-in Cord And Cable Ties


Lid Switch Assembly


Motor, Mounting Bracket And Belt


Outer Tub, Cover, Bearing And Seal Housing, Pressure Hose And counterweight


Output Board, Wire Harnesses And Wires


Shipping Brace, Plug And Special Tools


Top, Lid And Hood Back Panel


Weldment And Bearing Assembly, Drive Shaft And Pulley


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10116787		Screw   (Replaces: 27202)				$ 19.26
2	205888		Balance Ring Assembly   (Replaces: 39837)			Immediately	$ 88.26
3	719P3		Washtub Kit (comment: Stainless Steel)			Immediately	$ 816.02
4	39122		Washtub Gasket				$ 9.68
5	200996P		Sealant (comment: Use With Hub And Lip Seal Kit)			Immediately	$ 180.93
5	766P3A		Hub And Lip Seal Kit (comment: Do Not Use Any Sealant Other Than 200996p Sealant; Includes Item 10 And Installation Tool)			Immediately	$ 225.45
6	766P3A		Washtub Hub   (Replaces: 203510)			Immediately	$ 225.45
7	29728		Spline Insert			Immediately	$ 6.95
8	29220		Nut			Immediately	$ 6.95
9	DE81-10150A		Bell And Transmission Tube Seal   (Replaces: 36425)				$ 128.20
10	203792		Screw				$ 1.84
11	205061		Drive Bell   (Replaces: 203851)			Immediately	$ 29.87
12	39432		Screw				$ 6.95
13	DE81-08662A		Bell Plug   (Replaces: 36511)				$ 28.04
14	203852		Straight Agitator			Immediately	$ 49.48
15	36542		Fabric Softener Dispenser Assembly			Immediately	$ 12.11
