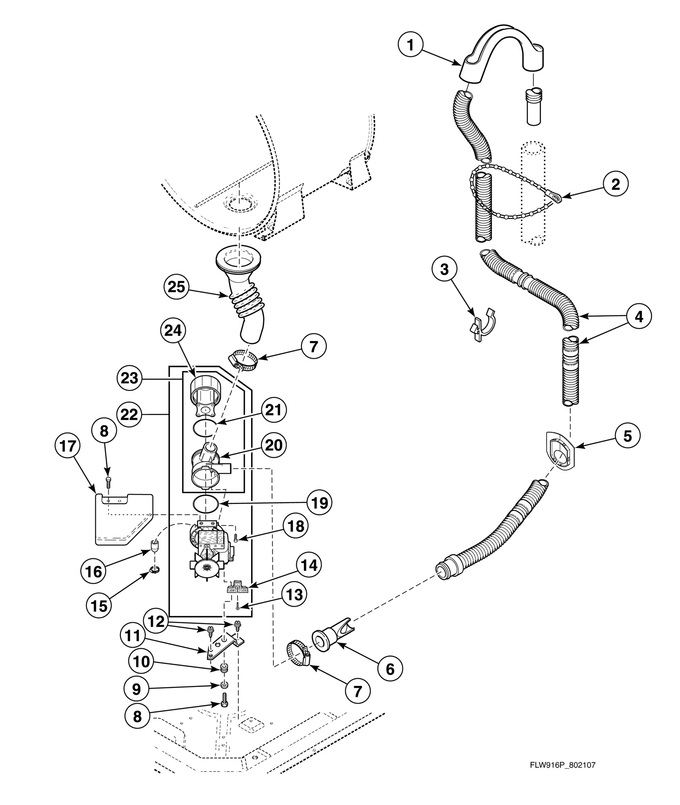

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	33615		Drain Hose Sleeve				$ 8.35
2	33489		Standpipe Strap		Appelez-nous	-
3	36014		Retainer Clip				$ 6.95
4	685730		Drain Hose			Immediately	$ 57.78
5	32219		Strain Relief				$ 6.95
6	800310		Backflow Preventer				$ 24.64
7	WP285655		Hose Clamp   (Replaces: 36802)			Immediately	$ 7.55
8	D501285		Screw (comment: Use With 801015 Drain Pump)				$ 2.76
8	DE81-03735A		Screw (comment: Metric; Use With 685703 Drain Pump)   (Replaces: 38096)				$ 180.77
9	800465		Washer (comment: Use With 685703 And 801015 Drain Pump)		Appelez-nous	-
10	802218		Grommet (comment: Use With 685703 And 801015 Drain Pump)		Appelez-nous	-
11	802219		Pump Bracket (comment: Use With 685703 And 801015 Drain Pump)		Appelez-nous	-
11	802626		Pump Mount Bracket (comment: Use With 802623 Drain Pump)		Appelez-nous	-
12	D503661		Screw		Appelez-nous	-
13	802430		Screw (comment: Use With 801015 And 802623 Drain Pump)		Appelez-nous	-
14	802432		Pump Mount (comment: Use With 801015 Drain Pump)		Appelez-nous	-
15	F200206		Hose Clamp (comment: Use With 685703 Drain Pump)				$ 1.15
16	801112		Nozzle Cap (comment: Use With 685703 Drain Pump)		Appelez-nous	-
17	38067		Pump Shield (comment: Use With 685703 Drain Pump)		Appelez-nous	-
18	802431		Screw (comment: Use With 801015 And 802623 Drain Pump)		Appelez-nous	-
19	802429P		O-ring (comment: Use With 801015 And 802623 Drain Pump)				$ 84.97
19	802487		O-ring (comment: Use With 685703 Drain Pump)		Appelez-nous	-
20	802428		Pump Housing (comment: Use With 801015 And 802623 Drain Pump)		Appelez-nous	-
20	801208		Pump Housing (comment: Use With 685703 Drain Pump)		Appelez-nous	-
21	801207		O-ring (comment: Use With 685703 Drain Pump)		Appelez-nous	-
21	802427		Gasket (comment: Use With 801015 And 802623 Drain Pump)				$ 30.78
22	802623P		Drain Pump (comment: Includes Pump Mount Bracket)			Immediately	$ 235.50
23	802434P		Pump Housing Assembly (comment: Includes Items 20, 21 And 24; Use With 801015 And 802623 Drain Pump)				$ 96.47
23	801209		Pump Housing Assembly (comment: Includes Items 20, 21 And 24; Use With 685703 Drain Pump)		Appelez-nous	-
24	801206P		Lid Assembly (comment: Includes Filter; Use With 685703 Drain Pump)		Appelez-nous	-
24	802426P		Lid Assembly (comment: Includes Filter; Use With 801015 And 802623 Drain Pump)				$ 138.29
25	800317		Tub-to-pump Hose				$ 54.70
25	COMM PART		Sealant (comment: Tub-to-pump Hose To Outer Tub)   (Replaces: 27615P)		Appelez-nous	-
