| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
D505808W |
|
Top Cover (comment: White) |
|
|
|
$ 91.43 |
|
|
| 1 |
D505808Q |
|
Top Cover (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
D501086 |
|
Screw |
|
|
Immediately |
$ 6.95 |
|
|
| 3 |
687542 |
|
Temperature Switch |
|
|
|
$ 42.29 |
|
|
| 4 |
800669 |
|
Temperature Switch Bracket |
|
Appelez-nous
|
- |
|
|
|
| 5 |
801240 |
 |
Cycle Switch |
|
|
Immediately |
$ 57.03 |
|
|
| 6 |
801390 |
|
Cycle Switch Bracket |
|
Appelez-nous
|
- |
|
|
|
| 7 |
D504008QP |
|
End Panel (comment: Bisque; Right) |
|
|
Immediately |
$ 23.09 |
|
|
| 7 |
D504008WP |
 |
End Panel (comment: White; Right) |
|
|
|
$ 19.23 |
|
|
| 8 |
802299P |
 |
Pressure Switch |
|
|
Immediately |
$ 74.01 |
|
|
| 9 |
802523P |
 |
Control Assembly |
|
|
Immediately |
$ 866.11 |
|
|
| 10 |
685837 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 11 |
801388 |
|
Control Support Panel |
|
Appelez-nous
|
- |
|
|
|
| 12 |
801356 |
|
Indicator Light (comment: Green) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
- |
|
Not On Your Model |
|
Appelez-nous
|
- |
|
|
|
| 14 |
COMM PART |
|
Graphic Panel (Replaces: 801369) |
|
Appelez-nous
|
- |
|
|
|
| 15 |
D512117Q |
|
Timer Knob Assembly (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 15 |
D512117W |
 |
Timer Knob Assembly (comment: White) |
|
|
Immediately |
$ 8.06 |
|
|
| 16 |
801435 |
|
Indicator Light Lens |
|
|
|
$ 6.95 |
|
|
| 17 |
801434W |
 |
Push-to-start Switch (comment: White) |
|
|
Immediately |
$ 22.66 |
|
|
| 17 |
801434Q |
|
Push-to-start Switch (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
38424Q |
|
Rocker Switch (comment: Bisque; Extra Rinse) |
|
Appelez-nous
|
- |
|
|
|
| 18 |
38424W |
 |
Rocker Switch (comment: White; Extra Rinse) |
|
|
|
$ 8.73 |
|
|
| 19 |
WP36701W |
 |
Knob Assembly (comment: White) (Replaces: 36701W) |
|
|
Immediately |
$ 44.31 |
|
|
| 19 |
36701Q |
|
Knob Assembly (comment: Bisque) |
|
|
|
$ 20.27 |
|
|
| 20 |
D504009QP |
|
End Panel (comment: Bisque; Left) |
|
Appelez-nous
|
- |
|
|
|
| 20 |
D504009WP |
 |
End Panel (comment: White; Left) |
|
|
Immediately |
$ 22.20 |
|
|

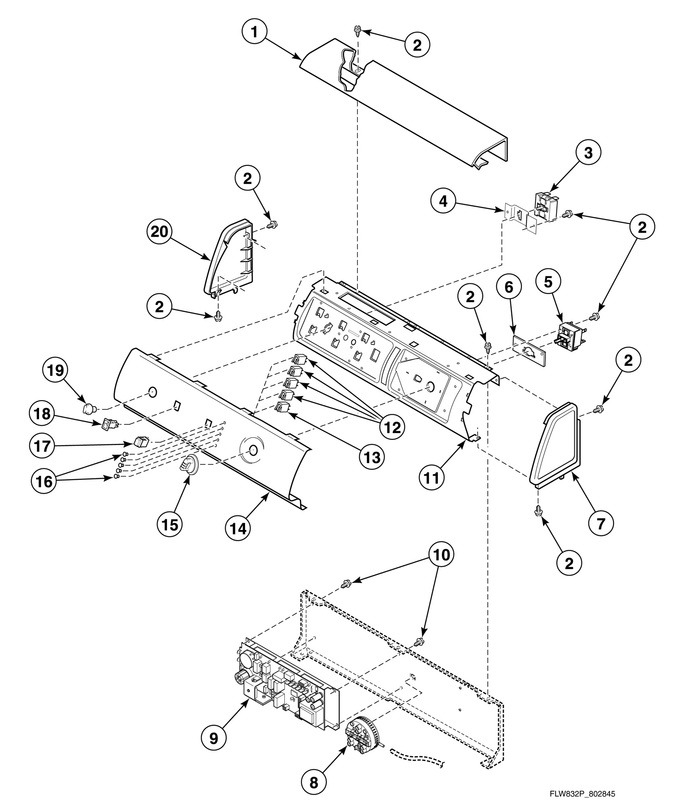

View Diagram in Separate Window
