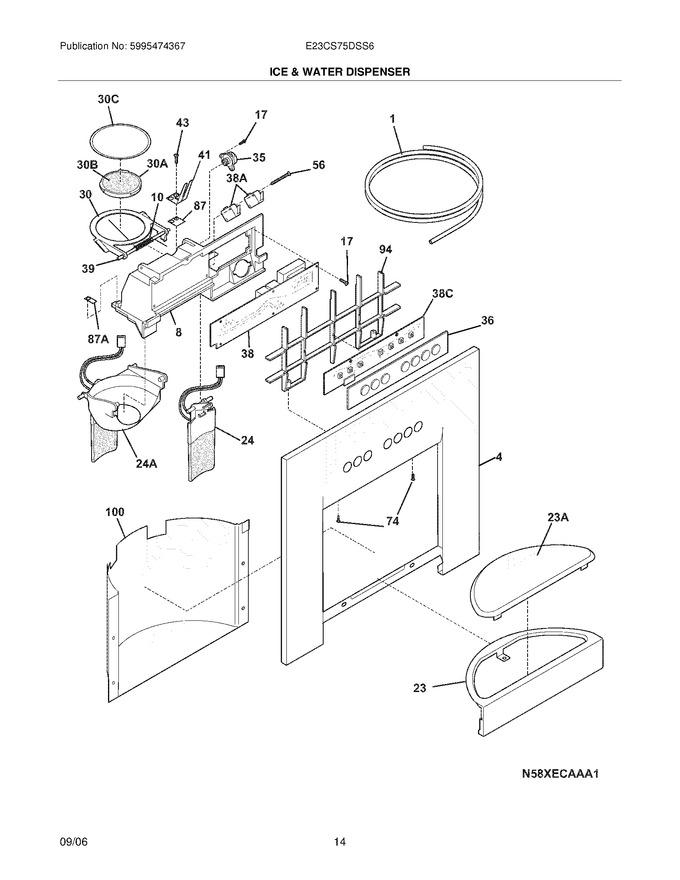

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	241533202		Cover-module,stainless		Appelez-nous	-
8	241680504		Module-dispenser				$ 183.65
10	241688901		Spring-torsion			Immediately	$ 21.27
17	241679801		Screw				$ 14.18
23	241531101		Drip Tray,stainless		Appelez-nous	-
24	241685704		Actuator,stainless				$ 187.11
30	241688401		Door Assy-ice Chute				$ 49.62
35	241689301		Damper-rotary				$ 70.52
36	241533501		Button Module,stainless				$ 304.77
38	241527601		Board-power				$ 427.72
39	241688801		Pin-hinge				$ 43.24
41	241689001		Spring-actuator				$ 21.97
43	215296301		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head				$ 13.46
74	5304436349		Screw		Appelez-nous	-
87	241688302		Bearing Plate				$ 19.85
94	241533301		Support,control Board				$ 42.20
100	241530401		Liner,dispen Housing ,stainless		Appelez-nous	-
23A	241531601		Drip Tray Insert				$ 88.10
24A	241682304		Actuator-ice,stainless				$ 232.09
30A	241688501		Door Center				$ 52.97
30B	241688601		Insulation-door				$ 63.17
30C	241688701		Door Seal				$ 40.46
38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 241689101)			Immediately	$ 8.60
38C	241680001		Harness-ribbon Cable		Appelez-nous	-
38C	241527501		Board-control		Appelez-nous	-
87A	241688301		Bearing Plate				$ 19.85
NI	241510902		Harness-dispenser				$ 23.40
NI	241533401		Seal,foam		Appelez-nous	-
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
NI	218976917		Tube-water Inlet,valve To Door				$ 62.47
NI	218976903		Tube-water Inlet,inlet Valve ,to Filter				$ 70.16
NI	218976901		Tube,water Inlet ,valve To Im			Immediately	$ 81.50
NI	218515403		Clip-grille				$ 29.06
NI	241686201		Insulator-electrical		Appelez-nous	-
NI	5303918256		Dispenser Heater Kit				$ 474.16
NI	5304453707		Screw-no.8-18 X 1/2,no.6 Hd Plask   (Replaces: 240363402)			Immediately	$ 15.92
