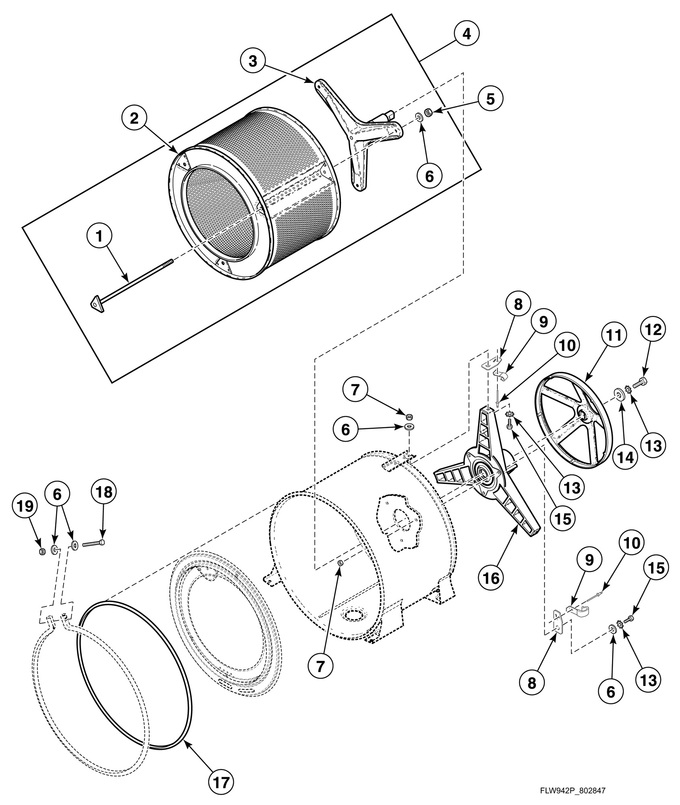

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	800666		Tension Rod Assembly		Appelez-nous	-
2	803008P		Inner Basket Assembly				$ 1,136.66
3	800749P		Trunnion Shaft And Hardware Kit (comment: Includes (3) Each Of Items 1, 5, 6, And 838p3 Hardware Kit)			Immediately	$ 1,172.70
4	802365P		Inner Basket Assembly				$ 2,367.86
5	803017		Nut		Appelez-nous	-
6	800457		Washer				$ 2.50
7	800452		Nut			Immediately	$ 0.83
8	800552		Hose Mounting Plate				$ 14.11
9	800553		Hose Clip		Appelez-nous	-
10	685847		Pop Rivet		Appelez-nous	-
11	800866		Driven Pulley			Immediately	$ 163.74
12	685831		Screw (comment: Left Hand Thread)				$ 6.95
13	M403958		Washer				$ 2.50
14	807679		Washer   (Replaces: 800464)				$ 2.92
15	M400043		Screw				$ 6.58
16	800428P		Bearing Housing Kit (comment: Includes 838p3 Hardware Kit)				$ 819.94
17	800432P		Tub Front Seal				$ 63.29
18	800462		Screw				$ 10.07
19	F430218		Nut				$ 6.95
NA	RB160001		Bearing Kit			Immediately	$ 171.14
NA	838P3		Hardware Kit (comment: Includes (8) Of Item 6, (6) Of Item 13, (6) Of Item 10, (1) Each Of Items 12, 14, 17, 18, 19 And 27604p Anti-seize Compound)				$ 87.57
NA	27604P		Anti-seize Compound (comment: Pulley To Inner Basket Shaft)				$ 7.07

    View Diagram in Separate Window       Print Part List
