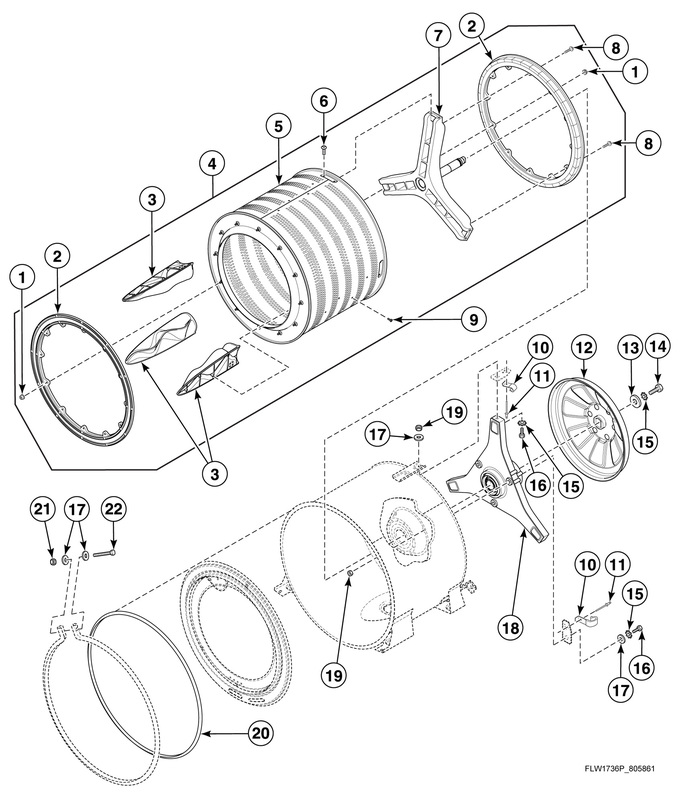

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	804418		Nut		Appelez-nous	-
2	804393		Balance Ring Assembly				$ 72.62
3	804382		Lifter				$ 15.23
4	804376P		Inner Basket Assembly Kit			Immediately	$ 3,410.23
5	804374P		Inner Basket Assembly				$ 1,023.68
6	804398		Screw		Appelez-nous	-
7	808043		Trunnion Assembly   (Replaces: 804405)				$ 466.93
8	804399		Screw		Appelez-nous	-
9	800548		Screw			Immediately	$ 3.88
10	800553		Hose Clip		Appelez-nous	-
11	685847		Pop Rivet		Appelez-nous	-
12	COMM PART		Pulley Assembly   (Replaces: 803974)		Appelez-nous	-
13	807679		Washer   (Replaces: 800464)				$ 2.92
14	685831		Screw (comment: Left Hand Thread)				$ 6.95
15	M403958		Washer				$ 2.50
16	M400043		Screw				$ 6.58
17	M400081		Washer				$ 4.58
18	805525		Bearing Housing Kit (comment: Includes Hardware And Tool)			Immediately	$ 630.67
19	800452		Nut			Immediately	$ 0.83
20	803801		Tub Front Seal				$ 15.91
21	F430218		Nut				$ 6.95
22	800462		Screw				$ 10.07
NA	27604P		Anti-seize Compound (comment: Pulley To Inner Basket Shaft)				$ 7.07
