SELECT A DIAGRAM

Base, Side And Rear Panels


Cabinet Top And Control Hood Rear Panel


Dispenser Assembly


Drain Hose And Pump


Front Panel, Door Assembly And Door Seal

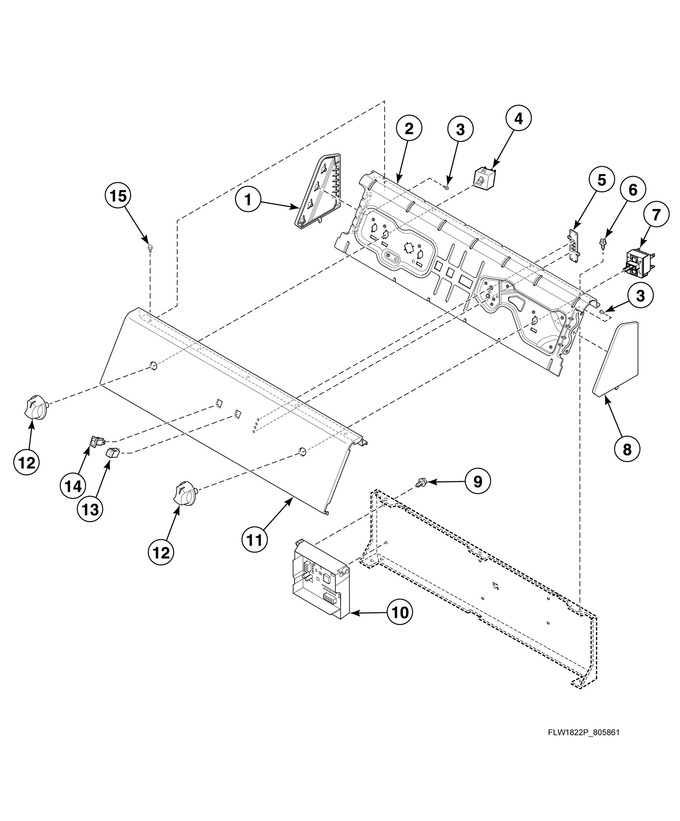

Graphic Panel, Control Support Panel And Controls (drawing 2 of 2)


Inner Basket, Trunnion, Bearing Housing And Pulley


Labels


Mixing Valve And Dispenser Hose


Motor And Belt


Outer Tub, Front And Clamp Ring


Shipping Materials


Special Tools


Wire Harnesses And Wires


Wire Ties, Harness Clips And Lead-in Cord


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	203730W		End Cap (comment: Left)				$ 11.19
2	806547		Control Support Panel				$ 41.53
3	203799		Screw				$ 0.49
4	35115		Temperature Switch				$ 30.67
5	203849		Led Display Assembly				$ 24.56
6	D501086		Screw			Immediately	$ 6.95
7	203976		Cycle Selector Switch				$ 37.15
8	203729W		End Cap (comment: Right)				$ 11.81
9	804608		Screw				$ 0.49
10	804474P		Control Assembly				$ 463.62
11	806708		Graphic Panel		Appelez-nous	-
12	806597		Knob Assembly			Immediately	$ 12.08
13	203935		Push Button Switch			Immediately	$ 10.13
14	203934		Rocker Switch				$ 5.03
15	807075		Screw   (Replaces: 204340)				$ 0.24

    View Diagram in Separate Window       Print Part List
