| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
36226 |
|
Bumper Pad |
|
|
|
$ 3.45 |
|
|
| 2 |
56079 |
 |
Panel Locator |
|
|
Immediately |
$ 6.95 |
|
|
| 3 |
39733 |
|
Screw (comment: Use With Painted Panels) |
|
|
|
$ 6.95 |
|
|
| 3 |
806276 |
|
Screw (comment: Use With Stainless Steel Panels) |
|
Appelez-nous
|
- |
|
|
|
| 4 |
800004WP |
|
Cabinet Panel Kit (comment: Left; White; Includes Corner Gusset With Hardware) |
|
|
|
$ 238.45 |
|
|
| 4 |
COMM PART |
|
Cabinet Side Panel (comment: Left; Gray) (Replaces: 800004DG) |
|
Appelez-nous
|
- |
|
|
|
| 4 |
802525P |
|
Cabinet Side Panel (comment: Left; Stainless Steel) |
|
Appelez-nous
|
- |
|
|
|
| 5 |
D503661 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 6 |
803790 |
|
Rear Panel (comment: Fixed; Through Serial No. 1810000001) |
|
Appelez-nous
|
- |
|
|
|
| 6 |
806716 |
|
Rear Panel (comment: Fixed; Starting Serial No. 1810000001) |
|
Appelez-nous
|
- |
|
|
|
| 7 |
D510136 |
 |
Top Hinge |
|
|
|
$ 6.95 |
|
|
| 8 |
803789 |
|
Rear Panel (comment: Removable) |
|
|
|
$ 77.18 |
|
|
| 9 |
803859 |
|
Shipping Plug |
|
Appelez-nous
|
- |
|
|
|
| 10 |
803851 |
|
Shipping Plate |
|
Appelez-nous
|
- |
|
|
|
| 11 |
803828 |
|
Drain Hose Bracket |
|
Appelez-nous
|
- |
|
|
|
| 12 |
806492 |
|
Side Panel Kit (comment: Right; White) |
|
|
|
$ 296.34 |
|
|
| 12 |
802526P |
|
Cabinet Side Panel (comment: Right; Stainless Steel) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
800005DG |
|
Cabinet Side Panel (comment: Right; Gray) |
|
Appelez-nous
|
- |
|
|
|
| 13 |
22003428 |
 |
Leveling Leg (Replaces: 34319) |
|
|
Immediately |
$ 14.41 |
|
|
| 14 |
D501855 |
 |
Rubber Foot (comment: Use To Prevent Movement On Smooth Surface Floor Coverings; Install Over Two Existing Front Rubber Feet (item 15)) |
|
|
|
$ 8.43 |
|
|
| 15 |
34318 |
 |
Rubber Foot |
|
|
Immediately |
$ 4.74 |
|
|
| 16 |
155P3 |
 |
Anchor (comment: Includes 4 Rubber Discs With Adhesive Backing) |
|
|
Immediately |
$ 65.05 |
|
|
| 16 |
802844P |
|
Anchor Floor Mount Assembly (comment: Includes 2 Rubber Discs With Adhesive Backing) |
|
|
|
$ 52.05 |
|
|
| 17 |
WP210385 |
 |
Nut (Replaces: 21899) |
|
|
|
$ 6.26 |
|
|
| 18 |
803876 |
|
Base Assembly |
|
|
|
$ 289.03 |
|
|
| 19 |
202470 |
|
Pressure Sensor |
|
|
Immediately |
$ 36.06 |
|
|
| NA |
806436P |
|
Paint (comment: Gray) |
|
Appelez-nous
|
- |
|
|
|
| NA |
122P4P |
|
Porcelain Touch-up Paint (comment: White) |
|
|
|
$ 53.58 |
|
|

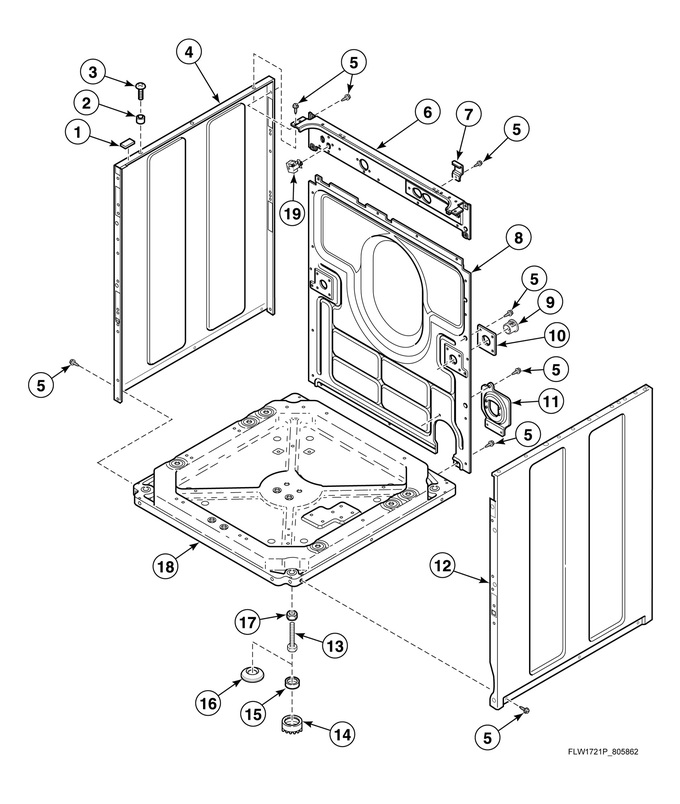

View Diagram in Separate Window
