| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
D511969*P |
|
Blower Housing And Cover Kit (comment: Includes Items 25 And 27) |
|
Appelez-nous
|
- |
|
|
|
| 2 |
D501218 |
|
Motor Switch (comment: Does Not Include Thermal Protector) |
|
Appelez-nous
|
- |
|
|
|
| 3 |
D511629P |
 |
Motor And Pulley Assembly (comment: 120 Volt/60 Hertz) |
|
|
Immediately |
$ 527.84 |
|
|
| 4 |
D510180 |
 |
Motor Mount Clamp |
|
|
|
$ 6.95 |
|
|
| 5 |
D511255 |
|
Cylinder Belt |
|
Appelez-nous
|
- |
|
|
|
| 6 |
D500011 |
 |
Motor Pulley |
|
|
Immediately |
$ 47.46 |
|
|
| 7 |
590P3 |
|
Motor Hub Ring Kit |
|
|
|
$ 68.06 |
|
|
| 8 |
WP3351614 |
 |
Screw (Replaces: 20530) |
|
|
Immediately |
$ 6.26 |
|
|
| 9 |
D503688 |
 |
Screw |
|
|
Immediately |
$ 6.95 |
|
|
| 10 |
D510139 |
|
Blower Fan Assembly |
|
Appelez-nous
|
- |
|
|
|
| 11 |
WP27001200 |
 |
Screw (Replaces: 33562) |
|
|
|
$ 6.91 |
|
|
| 12 |
D510185 |
 |
Idler Spring |
|
|
Immediately |
$ 2.95 |
|
|
| 13 |
56156 |
 |
Nut |
|
|
|
$ 6.95 |
|
|
| 14 |
D516310 |
|
Idler Lever (Replaces: D510133) |
|
|
|
$ 12.62 |
|
|
| 15 |
WP56461 |
 |
Shaft (Replaces: 56461) |
|
|
|
$ 85.03 |
|
|
| 16 |
WP233520 |
 |
Washer (Replaces: 52549) |
|
|
Immediately |
$ 7.16 |
|
|
| 17 |
D510142 |
|
Idler Wheel And Bearing Assembly |
|
Appelez-nous
|
- |
|
|
|
| 18 |
WP23748 |
 |
Retaining Ring (Replaces: 23748) |
|
|
Immediately |
$ 10.75 |
|
|
| 19 |
D500824 |
 |
Screw |
|
|
|
$ 6.95 |
|
|
| 20 |
D516792 |
 |
Idler Lever And Wheel Assembly (comment: Includes Items 13-18) (Replaces: D510158) |
|
|
Immediately |
$ 51.62 |
|
|
| 21 |
WPW10139757 |
 |
Nut (Replaces: 52566) |
|
|
|
$ 7.16 |
|
|
| 22 |
D518517 |
 |
Motor Mount (Replaces: D510060) |
|
|
|
$ 30.65 |
|
|
| 23 |
61401 |
 |
Thermostat Heater (comment: Use With 61372 Thermostat) |
|
|
|
$ 115.17 |
|
|
| 24 |
56410 |
 |
Thermostat (comment: Blue) |
|
|
|
$ 30.49 |
|
|
| 25 |
WP3177991 |
 |
Screw (comment: Use With 56410 Thermostat) (Replaces: 23222) |
|
|
Immediately |
$ 6.47 |
|
|
| 25 |
33561 |
|
Screw (comment: Use With 61372 Thermostat) |
|
Appelez-nous
|
- |
|
|
|
| 26 |
D500313 |
 |
Blower Housing Seal |
|
|
|
$ 27.05 |
|
|
| 27 |
31260 |
|
Screw |
|
|
|
$ 2.68 |
|
|

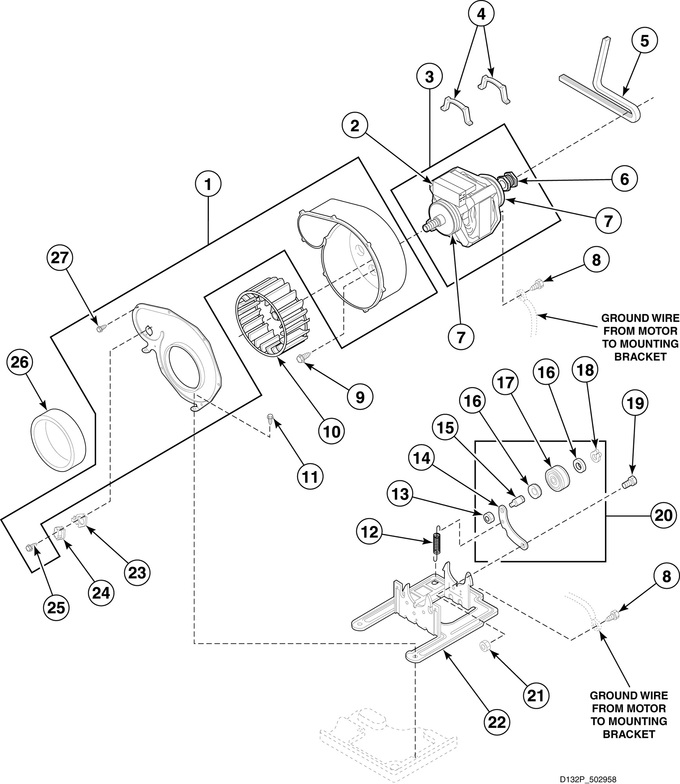

View Diagram in Separate Window
Print Part List
