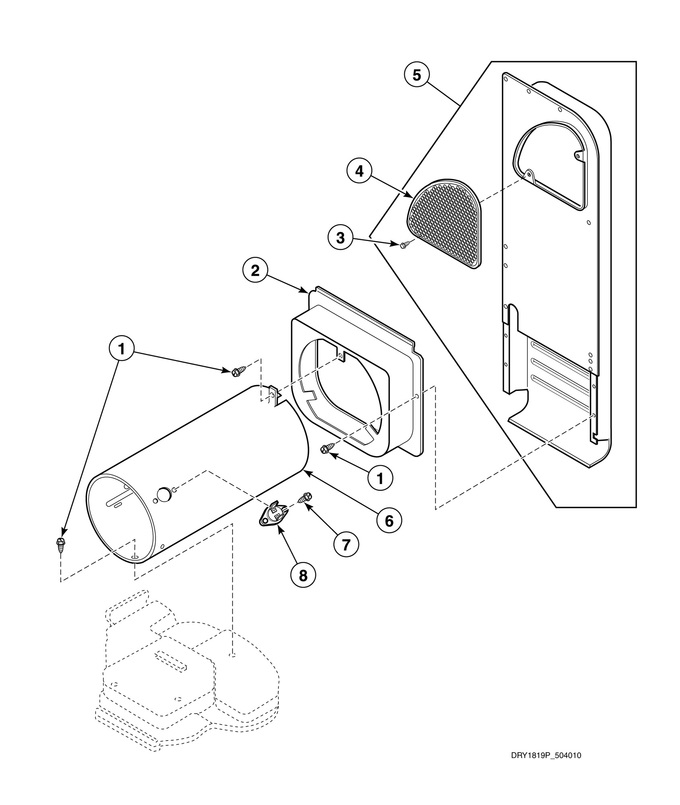

Heater Duct Assembly


Lead-in Cord - Gas Models


Loading Door


Motor Connection Block And Terminal Extractor Tools


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminals (drawing 1 Of 2)


Terminals (drawing 2 Of 2)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D503688		Screw			Immediately	$ 6.95
2	D510101		Heat Duct Shroud				$ 34.58
3	WP90767		Screw   (Replaces: 23962)			Immediately	$ 7.04
4	D500820		Outlet Cover			Immediately	$ 38.63
5	D510025P		Heater Duct And Screw Assembly (comment: Includes Items 3 And 4)				$ 99.89
6	D510131		Combustion Duct				$ 60.01
7	Sub. To D510151W		Screw   (Replaces: 51782)		Appelez-nous	-
8	D510702		Limit Thermostat (comment: Auto Reset)			Immediately	$ 28.39
