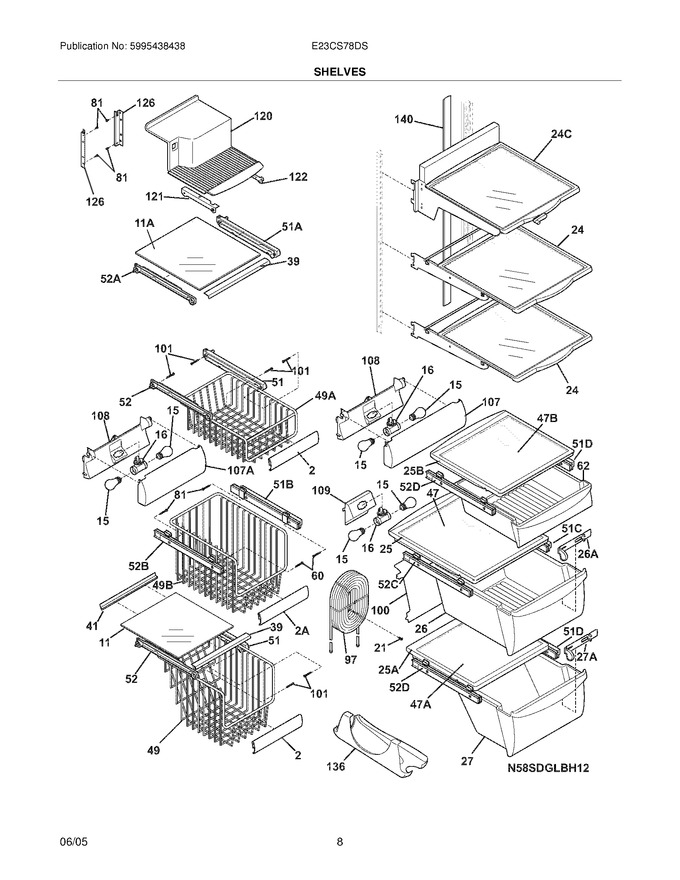

09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	241539502		Trim-basket				$ 34.45
11	241711213		Shelf-freezer,glass ,lower   (Replaces: 240443357)				$ 86.45
15	5304517886		Light Bulb   (Replaces: 241552801)			Immediately	$ 73.06
16	241622802		Socket-light				$ 65.93
24	240350160		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350127)			Immediately	$ 146.36
25	241565001		Cover-crisper Pan				$ 53.39
26	240351032		Pan-crisper,upper		Appelez-nous	-
27	240351227		Pan-crisper,lower		Appelez-nous	-
39	240367603		Trim-shelf,11.65`` ,front				$ 74.42
41	241571201		Trim-shelf,rear		Appelez-nous	-
47	240350649		Insert-pan Cover,glass			Immediately	$ 123.89
49	241541801		Basket-sliding		Appelez-nous	-
51	241514501		Hanger-basket,rh				$ 73.71
52	241514601		Hanger-basket,lh				$ 76.55
60	218362501		Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)   (Replaces: 218362500)				$ 12.05
62	240599710		Pan-meat		Appelez-nous	-
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
97	241532002		Water Tank				$ 473.00
100	241549901		Cover-water Tank		Appelez-nous	-
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
107	241513401		Shield-light,crisper		Appelez-nous	-
107	241521801		Shield-light,frzr		Appelez-nous	-
108	241513301		Cover-wiring,crisper Light				$ 64.17
109	241513202		Base-crisper Light Socket				$ 65.21
120	241691701		Shelf-ice Cream   (Replaces: 241504501)				$ 74.42
121	241504701		Rail-ice Cream Shelf,lh				$ 64.49
122	241504702		Rail-ice Cream Shelf,rh				$ 75.08
126	241674402		Channel,auger Mtg ,rh   (Replaces: 241630702)				$ 43.24
126	241630701		Channel,auger Mtg ,lh				$ 19.01
136	241657701		Dispenser-can,clear   (Replaces: 240424502)				$ 57.41
140	240430505		Channel,wtr Tube Cover				$ 68.38
11A	240443358		Shelf-freezer,glass ,upper				$ 97.07
24C	240350160		Shelf-``spill-safe``,sliding ,``aspect`` ,complete   (Replaces: 240424606)			Immediately	$ 146.36
25A	241564301		Cover-crisper Pan,lower				$ 89.31
25B	241565701		Cover-meat Pan				$ 89.15
26A	241638201		Control-humidity				$ 17.69
27A	240362201		Control-humidity				$ 69.46
2A	241539501		Trim-basket		Appelez-nous	-
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
47B	240443391		Shelf-deli Pan Cover   (Replaces: 240443356)			Immediately	$ 123.62
49A	241541901		Basket-sliding,upper ,half				$ 118.08
49B	241541701		Basket-sliding,upper ,full		Appelez-nous	-
51A	241514701		Hanger-shelf Glass,rh				$ 63.79
51B	240579803		Hanger-basket,rh				$ 85.05
51C	240579821		Hanger-basket,rh   (Replaces: 240579807)			Immediately	$ 125.45
51D	240579822		Hanger-basket,rh   (Replaces: 240579808)				$ 102.06
52A	241514801		Hanger-shelf Glass,lh				$ 343.75
52B	240579804		Hanger-basket,lh				$ 92.56
52C	240579819		Hanger-basket,lh   (Replaces: 240579805)				$ 113.00
52D	240579820		Hanger-basket,lh   (Replaces: 240579806)				$ 100.65
F26A	241638101		Frame-humidity Control				$ 51.74
NI	240423305		Divider-crisper Pan				$ 123.17
NI	240423205		Retainer				$ 15.17
NI	240423101		Channel-divider				$ 48.53
NI	241513101		Harness-wiring		Appelez-nous	-
