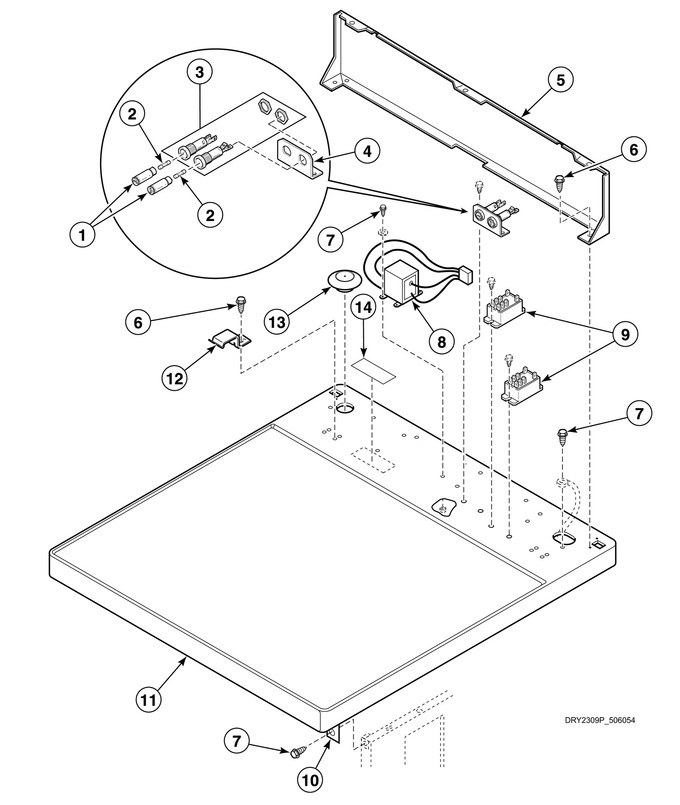

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	-		Not On Your Model		Appelez-nous	-
2	-		Not On Your Model		Appelez-nous	-
3	-		Not On Your Model		Appelez-nous	-
4	-		Not On Your Model		Appelez-nous	-
5	D510099		Hood Back Panel				$ 45.40
6	D501086		Screw			Immediately	$ 6.95
7	D503688		Screw			Immediately	$ 6.95
8	-		Not On Your Model		Appelez-nous	-
9	D502501		Relay		Appelez-nous	-
10	D510146		Bracket				$ 6.95
11	D510029WP		Top Panel Kit (comment: White; Includes 2 Of Item 7)			Immediately	$ 443.54
11	D510029G		Top Panel (comment: Gray)		Appelez-nous	-
11	D510029LP		Top Panel Kit (comment: Almond; Includes 2 Of Item 7)		Appelez-nous	-
12	35358		Hold-down Clip				$ 6.95
13	-		Not On Your Model		Appelez-nous	-
14	D505281		Disconnect Power Warning Label		Appelez-nous	-
NA	-		Not On Your Model		Appelez-nous	-
