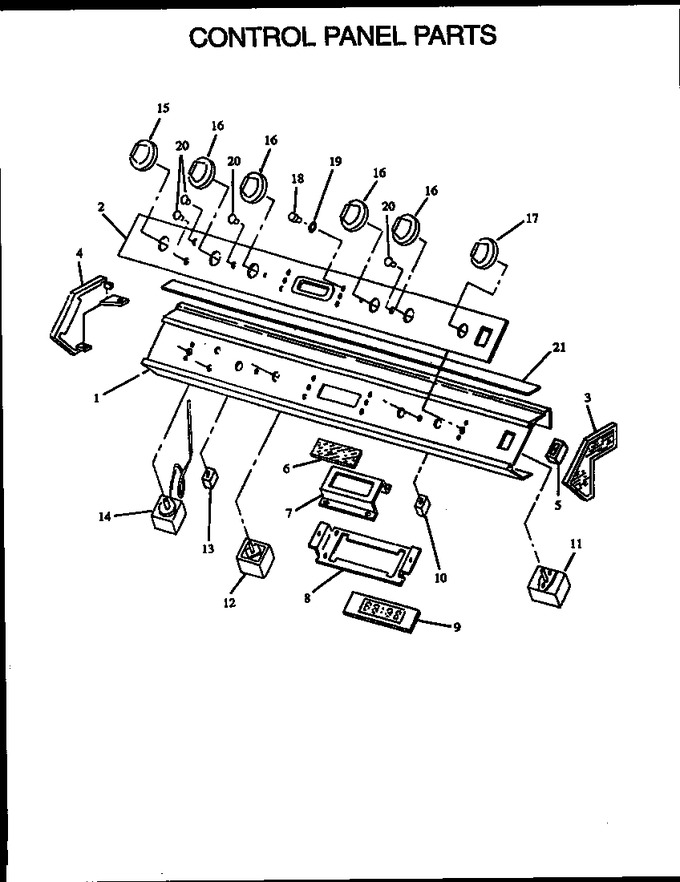

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0302559		Control Panel		Appelez-nous	-
2	0302562		Inlay, Control Panel		Appelez-nous	-
3	0306432		End Cap R. H.		Appelez-nous	-
4	Y0306433		End Cap L. H.		Appelez-nous	-
5	Y0063997		Switch, Rocker		Appelez-nous	-
6	0300623		Glass, Clock		Appelez-nous	-
7	0300622		Mounting Bracket, Glass		Appelez-nous	-
8	Y0300382		Mtg. Bracket, Clock		Appelez-nous	-
9	0301293		Display Board (clock)		Appelez-nous	-
10	0065822		Light Indicator		Appelez-nous	-
11	Y0063008		Switch, Selector		Appelez-nous	-
12	W11121639		Switch,inf(240p-1243)   (Replaces: Y0058773)				$ 149.17
13	0065822		Light Indicator		Appelez-nous	-
14	Y0063416		Thermostat		Appelez-nous	-
15	0302564		Knob, Oven Control		Appelez-nous	-
16	0302566		Knob, Top Element		Appelez-nous	-
17	0302565		Knob, Selector		Appelez-nous	-
18	Y0300614		Button, W/cushion		Appelez-nous	-
19	Y0301481		Bushing, Clock		Appelez-nous	-
20	Y0301209		Lens, Indicator Light, Red		Appelez-nous	-
21	0302563		Insert, Top Control Panel		Appelez-nous	-
NI	WP3400882		Screw, No.8-32 X 3/16 Pph   (Replaces: Y0041768)			Immediately	$ 6.47
NI	304303B		Strip, Filler		Appelez-nous	-
