| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
D510032LP |
|
Top Kit (comment: Almond) |
|
Appelez-nous
|
- |
|
|
|
| 1 |
802247QP |
|
Top And Gusset Assembly (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 1 |
802247WP |
|
Top And Gusset Assembly (comment: White) |
|
|
|
$ 461.42 |
|
|
| 2 |
D511036 |
 |
Hinge |
|
|
Immediately |
$ 4.23 |
|
|
| 3 |
29651 |
|
Bolt (comment: 4 Required) |
|
|
|
$ 6.95 |
|
|
| 4 |
D504228 |
|
Top Mounting Bracket |
|
Appelez-nous
|
- |
|
|
|
| 5 |
D503688 |
 |
Screw |
|
|
Immediately |
$ 6.95 |
|
|
| 6 |
801058 |
|
Rear Control Cabinet |
|
Appelez-nous
|
- |
|
|
|
| 7 |
44087201 |
|
Nut |
|
Appelez-nous
|
- |
|
|
|
| 8 |
800915W |
|
Right Control Cabinet Side (comment: White) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
800915L |
|
Right Control Cabinet Side (comment: Almond) |
|
Appelez-nous
|
- |
|
|
|
| 8 |
800915Q |
|
Right Control Cabinet Side (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 9 |
D511277 |
 |
Resistor Assembly |
|
|
|
$ 13.57 |
|
|
| 10 |
D519030 |
 |
Timer And Harness Kit (Replaces: D505797P) |
|
|
Immediately |
$ 286.93 |
|
|
| 11 |
D511421W |
|
Control Panel Assembly |
|
Appelez-nous
|
- |
|
|
|
| 12 |
D511406 |
|
Graphic Overlay |
|
Appelez-nous
|
- |
|
|
|
| 13 |
801777 |
|
Control Cabinet Bottom |
|
Appelez-nous
|
- |
|
|
|
| 14 |
- |
|
Not On Your Model |
|
Appelez-nous
|
- |
|
|
|
| 15 |
800930 |
|
Screw (comment: 4 Required) |
|
Appelez-nous
|
- |
|
|
|
| 16 |
D512117Q |
|
Timer Knob Assembly (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 16 |
D512117W |
 |
Timer Knob Assembly (comment: White) |
|
|
Immediately |
$ 8.06 |
|
|
| 17 |
36701Q |
|
Knob Assembly (comment: Bisque) |
|
|
|
$ 20.27 |
|
|
| 17 |
36701L |
|
Knob Assembly (comment: Almond) |
|
|
|
$ 14.80 |
|
|
| 17 |
WP36701W |
 |
Knob Assembly (comment: White) (Replaces: 36701W) |
|
|
Immediately |
$ 44.31 |
|
|
| 18 |
800922 |
|
Domed Label |
|
Appelez-nous
|
- |
|
|
|
| 19 |
800900QP |
|
Left Control Cabinet Side (comment: Bisque) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
800900LP |
|
Left Control Cabinet Side (comment: Almond) |
|
Appelez-nous
|
- |
|
|
|
| 19 |
800900WP |
|
Left Control Cabinet Side (comment: White) |
|
Appelez-nous
|
- |
|
|
|
| 20 |
70240301 |
|
Screw (comment: 8 Required) |
|
Appelez-nous
|
- |
|
|
|
| 21 |
70030501 |
|
Expansion Clip (comment: 12 Required) |
|
Appelez-nous
|
- |
|
|
|
| 22 |
D513505 |
 |
Fabric Selector Switch |
|
|
Immediately |
$ 46.66 |
|
|

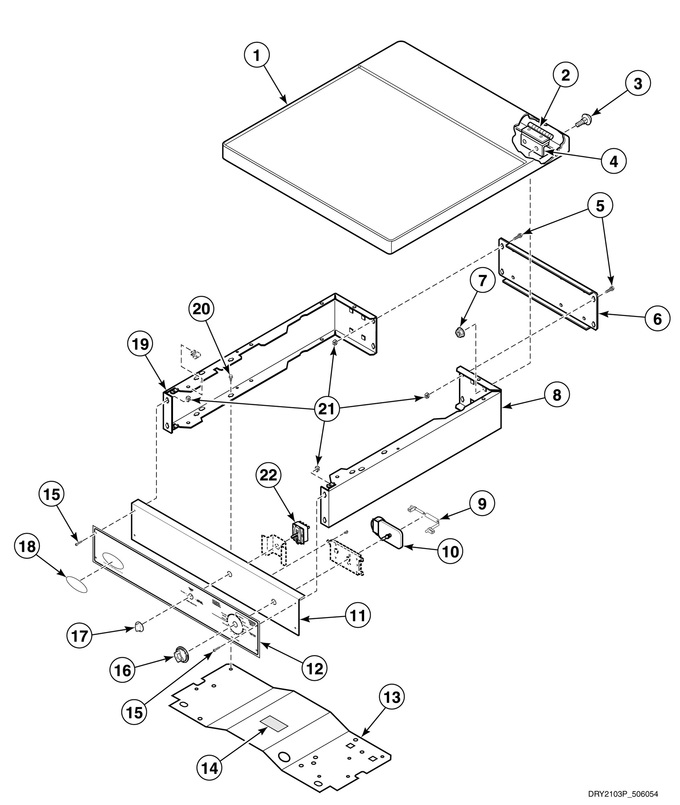

View Diagram in Separate Window
