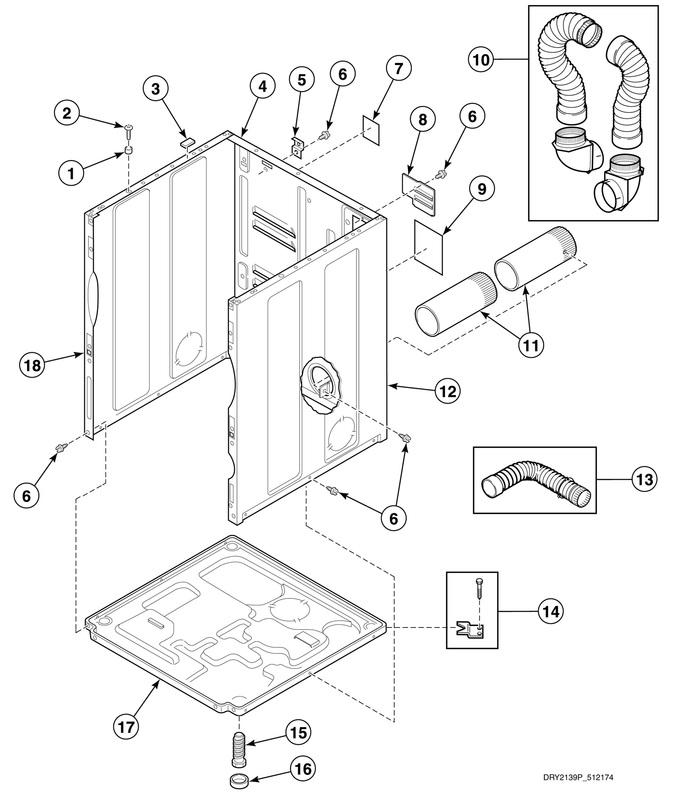

Cabinet, Exhaust Duct And Base - Single Dryers


Control Panel And Controls - Rear Control


Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light


Heater Duct And Element Assembly (electric Models)


Loading Door - Without Window (drawing 2 Of 2)


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminal Block And Terminals


Terminals


Terminals And Terminal Extractor Tools


Wire Harnesses And Wires - Rear Control Models Starting serial no. 1207


Wire Harnesses And Wires - Rear Control Models Through serial no. 1207


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	56079		Panel Locator			Immediately	$ 6.95
2	39733		Screw (comment: Use With Painted Side Panels)				$ 6.95
2	D512921		Screw (comment: Use With Stainless Steel Side Panels)		Appelez-nous	-
3	56128		Bumper Pad				$ 6.95
4	D514632P		Cabinet Rear Panel				$ 123.82
5	D510136		Top Hinge				$ 6.95
6	D503688		Screw			Immediately	$ 6.95
7	-		Not On Your Model		Appelez-nous	-
8	D510903		Access Panel Plate				$ 5.52
9	D511005		Electric Clearance Label		Appelez-nous	-
10	Sub. To D510502W		Flexible Venting Kit   (Replaces: 521P3)		Appelez-nous	-
11	D510137		Exhaust Duct (comment: Each Dryer Requires 2 Pieces)		Appelez-nous	-
12	D510002WP		Cabinet Side Panel (comment: Right)				$ 252.75
13	528P3		Directional Exhaust Kit (comment: Used To Vent Dryer Out The Sides Or Bottom)				$ 133.36
14	526P3		Hold Down Kit (comment: For Mobile Home Installations)		Appelez-nous	-
15	D510135		Leveling Leg			Immediately	$ 8.43
16	D501855		Rubber Foot				$ 8.43
17	D513901		Dryer Base		Appelez-nous	-
18	D510001WP		Cabinet Side Panel (comment: Left)				$ 227.76
