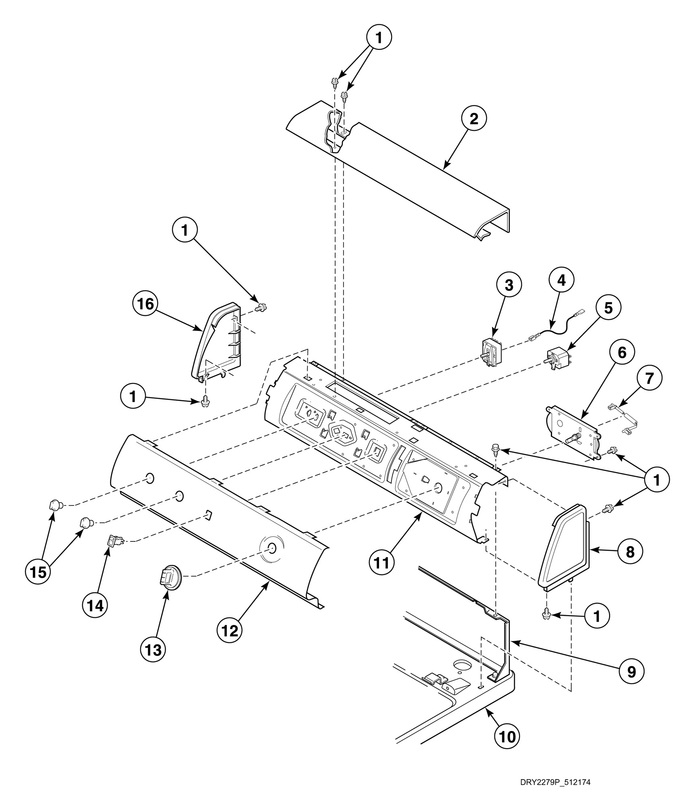

Control Panel And Controls - Rear Control


Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light


Heater Duct And Element Assembly (electric Models)


Loading Door - Without Window (drawing 2 Of 2)


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminal Block And Terminals


Terminals


Terminals And Terminal Extractor Tools


Wire Harnesses And Wires - Rear Control Models Starting serial no. 1207


Wire Harnesses And Wires - Rear Control Models Through serial no. 1207


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D501086		Screw			Immediately	$ 6.95
2	D505808W		Top Cover				$ 91.43
3	D513506		Fabric Selector Switch				$ 65.43
4	COMM PART		Wire Assembly (comment: Fabric Selector Switch To Timer)   (Replaces: D510540)		Appelez-nous	-
5	D510211		Buzzer				$ 41.95
6	D511150P		Timer				$ 191.74
7	D511277		Resistor Assembly				$ 13.57
8	D504008WP		End Panel (comment: Right)				$ 19.23
9	D510099		Hood Back Panel				$ 45.40
10	D510029WP		Top Panel Kit			Immediately	$ 443.54
11	D503901		Control Support Panel		Appelez-nous	-
12	D513015W		Graphic Panel		Appelez-nous	-
13	803168P		Knob Assembly			Immediately	$ 11.03
14	38424W		Rocker Switch				$ 8.73
15	803119P		Control Knob Assembly			Immediately	$ 12.79
16	D504009WP		End Panel (comment: Left)			Immediately	$ 22.20
NA	D511148		Wire Assembly (comment: Extra Tumble Use With Item 14)		Appelez-nous	-
