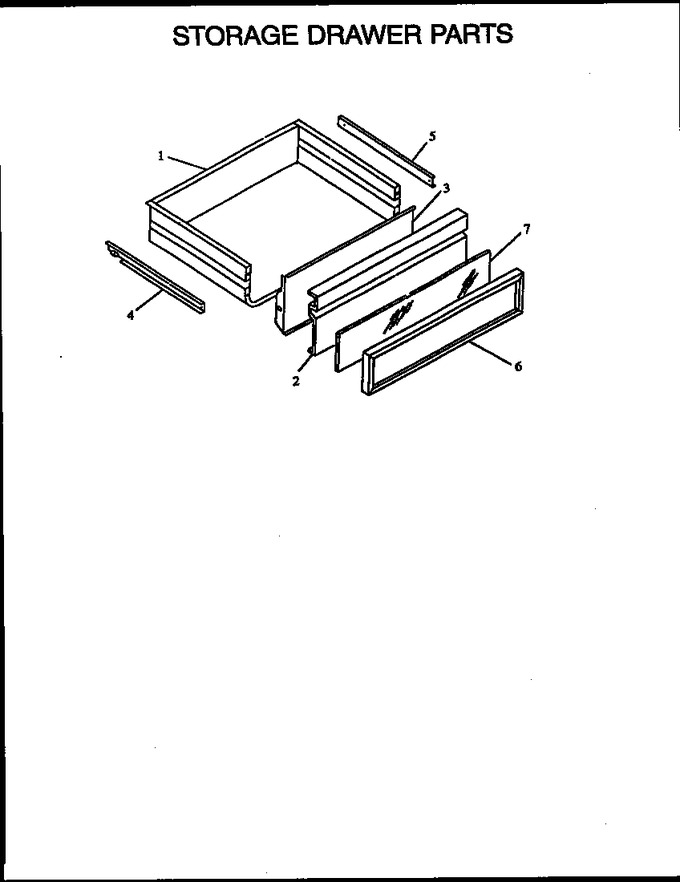

06 - Storage Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 306519B | Wrapper, Stor Drawer |
|
- | |||||
| 2 | 059499W | Panel Drawer, White |
|
- | |||||
| 2 | 059499G | Panel, Drawer |
|
- | |||||
| 3 | 301543E | Liner, Drawer Panel |
|
- | |||||
| 4 | Y0300476 | Runner, Storage Door, L.h. |
|
- | |||||
| 5 | 0300477 | Runner, Storage Door R.h. |
|
- | |||||
| 6 | 303151W | Trim Frame, Drawer Panel |
|
- | |||||
| 7 | 0303152 | Panel White, Glass |
|
- | |||||
| NI | Y0076357 | Rivet, Pop |
|
- | |||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 |
