SELECT A DIAGRAM

Access Panel, Front Panel And Seal


Cabinet, Exhaust Duct And Base - Single Dryers


Control Cabinet And Controls


Front Bulkhead, Air Duct, Felt Seal And Cylinder With Light


Heater Duct And Element Assembly (electric Models)

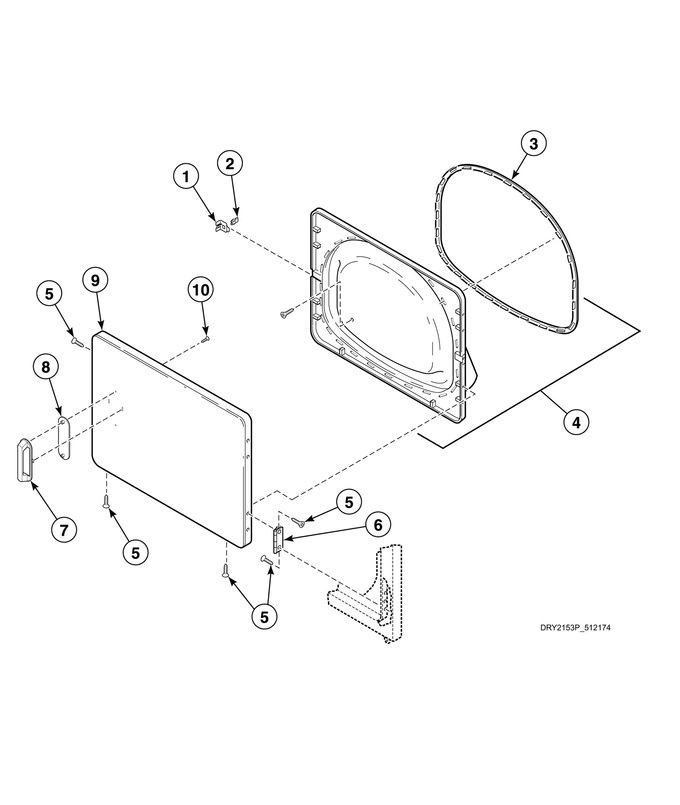

Loading Door - Without Window (drawing 1 Of 2)


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminal Block And Terminals


Terminals


Terminals And Terminal Extractor Tools


Wire Harnesses And Wires - Front Control Models Starting serial no. 1303025315


Wire Harnesses And Wires - Front Control Models Through serial no. 1303025314


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D510127		Door Strike Mount				$ 3.22
2	D510181		Door Strike			Immediately	$ 4.00
3	D510147P		Liner Door Seal				$ 25.09
4	D513109P		Liner, Seal And Grill Assembly (comment: Gray)		Appelez-nous	-
5	D500226		Screw   (Replaces: D514461)				$ 3.88
6	D511036		Hinge			Immediately	$ 4.23
7	803095		Door Handle				$ 56.50
8	803094P		Handle Cover				$ 20.63
9	D513156		Dryer Door				$ 546.51
10	800548		Screw			Immediately	$ 3.88

    View Diagram in Separate Window       Print Part List
