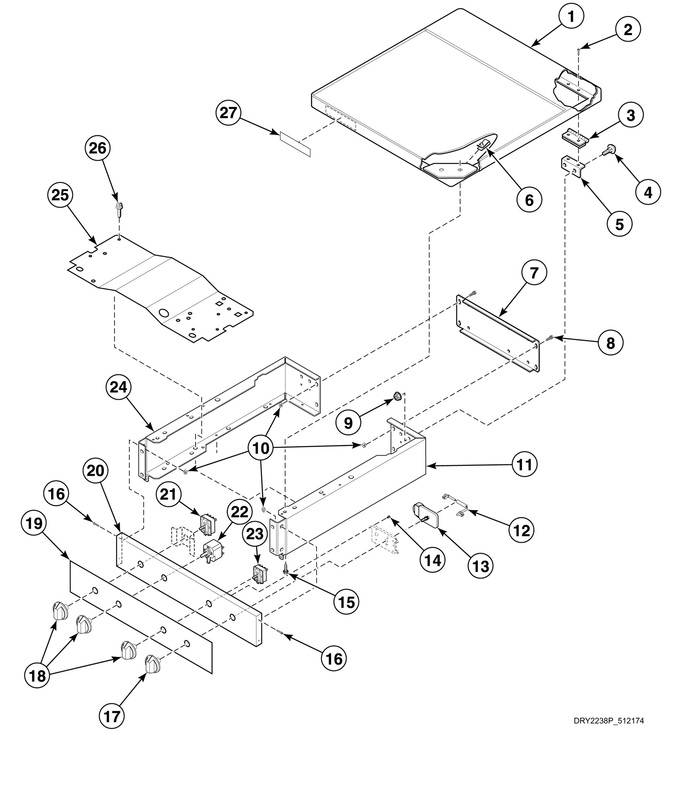

| Diagram # |
Part Number |
|
Description |
Series |
Availability |
Ships |
Price |
Add to Cart | |
| 1 |
803144P |
|
Top Kit |
|
|
|
$ 581.12 |
|
|
| 2 |
685847 |
|
Pop Rivet |
|
Appelez-nous
|
- |
|
|
|
| 3 |
D511036 |
 |
Hinge |
|
|
Immediately |
$ 4.23 |
|
|
| 4 |
29651 |
|
Bolt |
|
|
|
$ 6.95 |
|
|
| 5 |
D504228 |
|
Top Mounting Bracket |
|
Appelez-nous
|
- |
|
|
|
| 6 |
36020 |
 |
Nut |
|
|
Immediately |
$ 6.95 |
|
|
| 7 |
801058 |
|
Rear Control Cabinet |
|
Appelez-nous
|
- |
|
|
|
| 8 |
70240301 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 9 |
44087201 |
|
Nut |
|
Appelez-nous
|
- |
|
|
|
| 10 |
70030501 |
|
Expansion Clip |
|
Appelez-nous
|
- |
|
|
|
| 11 |
803141 |
|
Control Cabinet (comment: Right; Stainless Steel) |
|
Appelez-nous
|
- |
|
|
|
| 11 |
D513701 |
|
Control Cabinet (comment: Right; Gray) |
|
Appelez-nous
|
- |
|
|
|
| 12 |
- |
|
Not On Your Model |
|
Appelez-nous
|
- |
|
|
|
| 13 |
D511149P |
|
Timer |
|
Appelez-nous
|
- |
|
|
|
| 14 |
D501086 |
|
Screw |
|
|
Immediately |
$ 6.95 |
|
|
| 15 |
23008 |
|
Screw |
|
|
|
$ 6.95 |
|
|
| 16 |
F430956 |
|
Screw |
|
Appelez-nous
|
- |
|
|
|
| 17 |
803098P |
|
Timer Knob Assembly |
|
|
|
$ 45.20 |
|
|
| 18 |
803099P |
 |
Control Knob Assembly |
|
|
Immediately |
$ 50.20 |
|
|
| 19 |
D513112 |
|
Panel |
|
Appelez-nous
|
- |
|
|
|
| 20 |
D513161 |
|
Control Panel Assembly |
|
Appelez-nous
|
- |
|
|
|
| 21 |
D513506 |
 |
Fabric Selector Switch |
|
|
|
$ 65.43 |
|
|
| 22 |
D510211 |
 |
Buzzer |
|
|
|
$ 41.95 |
|
|
| 23 |
803568 |
|
Selector Switch |
|
|
|
$ 46.54 |
|
|
| 24 |
803142 |
|
Control Cabinet (comment: Left; Stainless Steel) |
|
Appelez-nous
|
- |
|
|
|
| 24 |
D513702 |
|
Control Cabinet (comment: Left; Gray) |
|
Appelez-nous
|
- |
|
|
|
| 25 |
801777 |
|
Control Cabinet Bottom |
|
Appelez-nous
|
- |
|
|
|
| 26 |
M405188 |
|
Screw (comment: Use With Stainless Steel Side Panels) |
|
Appelez-nous
|
- |
|
|
|
| 26 |
D503661 |
|
Screw (comment: Use With Painted Side Panels) |
|
Appelez-nous
|
- |
|
|
|
| 27 |
803013 |
|
Badge |
|
Appelez-nous
|
- |
|
|
|
| NA |
D513170P |
|
Wire Assembly (comment: Extra Tumble) |
|
Appelez-nous
|
- |
|
|
|
