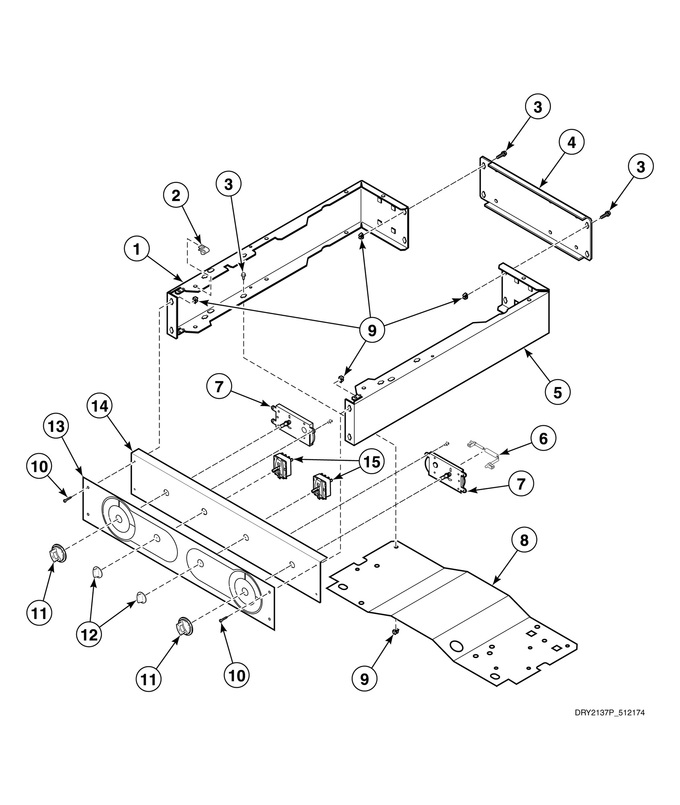

Control Panel And Controls - Stacked Models


Front Bulkhead, Air Duct, Felt Seal And Cylinder Without Light


Heater Duct And Element Assembly (electric Models)


Loading Door - With Window


Motor, Exhaust Fan And Belt


Rear Bulkhead, Felt Seal, Cylinder Roller And Terminal Block


Terminal Block And Terminals


Terminals


Terminals And Terminal Extractor Tools


Wire Harnesses And Wires - Stacked Models


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	800900WP		Left Control Cabinet Side		Appelez-nous	-
2	800931		Nut		Appelez-nous	-
3	430497		Screw		Appelez-nous	-
4	801058		Rear Control Cabinet		Appelez-nous	-
5	800915W		Right Control Cabinet Side		Appelez-nous	-
6	D511277		Resistor Assembly (comment: Use With 505797 Timer)				$ 13.57
7	D519030		Timer And Harness Kit   (Replaces: D505797P)			Immediately	$ 286.93
8	801777		Control Cabinet Bottom		Appelez-nous	-
9	70030501		Expansion Clip		Appelez-nous	-
10	800930		Screw		Appelez-nous	-
11	D512117W		Timer Knob Assembly			Immediately	$ 8.06
12	WP36701W		Knob Assembly   (Replaces: 36701W)			Immediately	$ 44.31
13	D512212		Graphic Overlay		Appelez-nous	-
14	D512034W		Control Panel Assembly		Appelez-nous	-
15	D513505		Fabric Selector Switch			Immediately	$ 46.66

    View Diagram in Separate Window       Print Part List
